FiberKom SC/APC Optical Mini Receiver without R.C.

SKU

TEL238079

Brands: Televes

Availability: On request

Delivery: 1 to 7 days

€147.46 Tax included

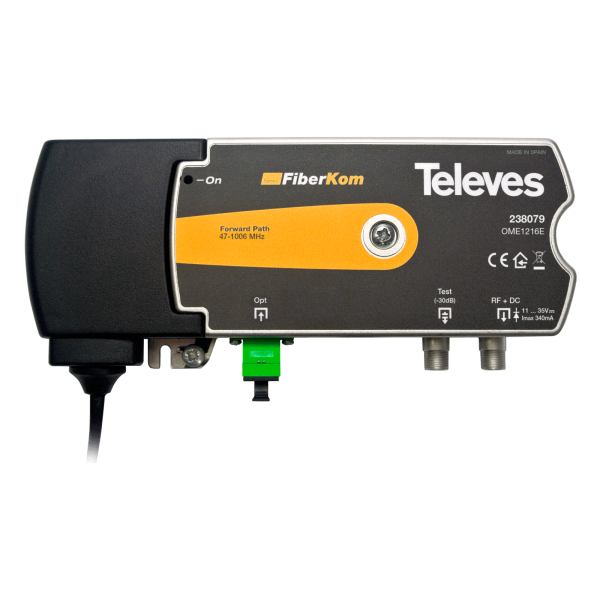

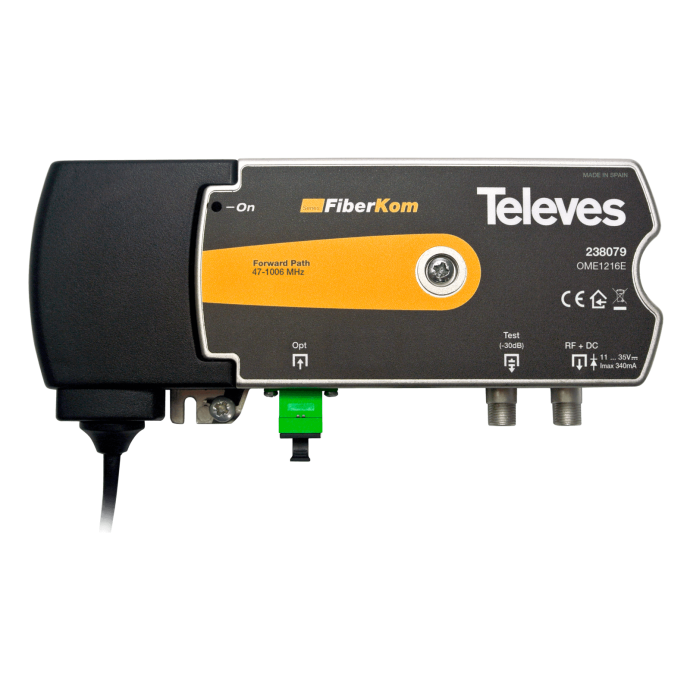

FiberKom SC/APC Televes 238079 Optical Receiver

This equipment receives a 1200-1600nm optical signal and regenerates it into an amplified RF (47-1006MHz) output. The FiberKom mini-receiver integrates the OLC (Optical Level Control) technology that automatically regulates the signal to obtain an optimum and constant output level. It also incorporates pre-emphasis, attenuation and equalization functions to adapt the RF signal to the characteristics of the coaxial network.

Reference 238079 consists of local power. Its consumption is really low, as is its noise level C/N. It has 1 SC/APC optical connector and type F female for RF and Test output (-30dB).

The FiberKom optical mini-receiver is ideal for RF Overlay, FTTB and FTTH applications; in small collective facilities.

Details

FiberKom 1-fiber SC/APC mini-receiver with local power.

What are the main features of the Televes FiberKom 238079 optical mini-receiver?

The OLC (Optical Level Control) technology automatically adjusts the parameters to achieve a constant output level, irrespective of the channel load
Equipped with pre-equalization, attenuation, and equalization controls to adapt the output signal to the coaxial network characteristics
High output voltage (RF amplification) and enhanced C/N
Wide reception optical range
Low power consumption
SC/APC optical connectors, and F-type connectors for RF

What technical specifications does the Televes FiberKom 238079 optical receiver have?

Forward path
Frequency range	MHz	47 ... 1006
Output impedance	Ohm	75
Optical input level for OLC	dBm	-8 ... +1dBm
Flatness	dB	± 1
Number of outputs	no.	1
Typical output level in OLC range	dBμV / dBmV	100 / 40
CNR	dB	>51
CSO	dB	>60
CTB	dB	>60
Equivalent noise current density at input	pA/ Hz	< 6
Gain control (2dB steps)	dB	0... 18
Pre-emphasis	dB	3, 7, 9
Wavelength	nm	1200 - 1600
Optical return loss	dB	>40
Optical connector	type	SC/APC
Max. optical input power before damage	dBm	2
Optical device	type	InGaAs pin photodiode
General
Power voltage / Max. consumption	V=/mA	11 / 340.... 35 / 140 (ref. 238101) 99 / 75 ... 253 / 40 (ref. 238079)
Test point	dB	-30 ±1
RF connectors	type	F
Housing material		Zamak/ABS
Operating temperature	ºC / ºF	-5...+45 / +23....+113
Index operation	IP	30
EMC compatibility		EN 50083-2
Safety		EN 60825-1
