Power Supply 12V 4.5A for Terra Header Equipment

SKU
TERTEUP410S
Brands: Terra
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€198.32 Tax included
Terra

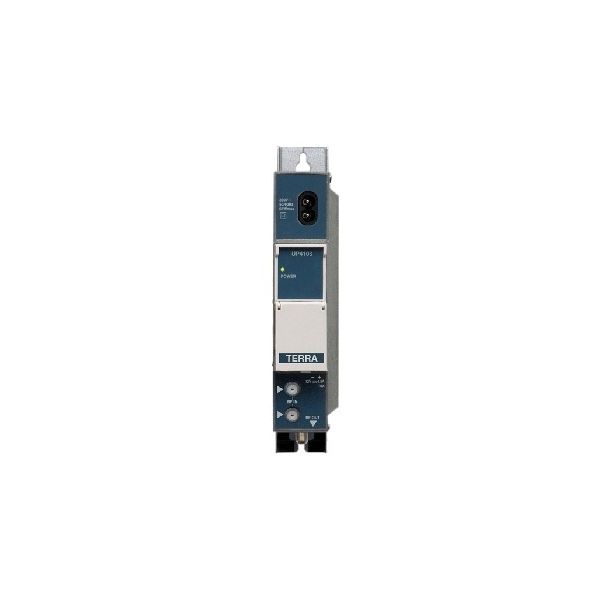

47-2400Mhz 12V 4.5A Terra UP410S power supply

Modular 12V and 4.5A DIN rail or wall mount power supply for Terra single channel equipment. With RF connection (x3) type F for the passage of the mixed signal (47-2400MHz).

This feeder includes overload and short circuit protection. Its connection is made with a power cable like the Terra 780.20.

Compatible with all Terra single-channel amplifiers and transmodulators: TDX440S, AT420, AT421, AT422, AT440, TDX420S, MA400, TDX410, TDX420, etc.

12V 4.5A power supply with RF connection for Terra modular bedside equipment.

What technical specifications does the Terra UP410S power supply have?

REFERENCIA

REFERENCE

UP410S

Fuente de alimentación

Power Supply

Voltaje de entrada

Input voltage

187-250 V ~ 50/60 Hz

Voltaje de salida, corriente

Output voltage, current

12 V 4.5 A max.

Consumo de energía

Power consumption

65 W max.

Combinador de RF

RF combiner

Rango de frecuencia

Frequency range

47-2400 MHz

Pérdida de inserción

Insertion loss

4dB - 862 MHz

6dB - 2400 MHz

Aislamiento

Isolation

≥ 20 dB

Pérdida de retorno

Return loss

≥ 20 dB - 862 MHz

≥ 12 dB - 2400 MHz

Temperatura de funcionamiento

Operating temperature range

0º ÷ +50º C

Dimensiones/Peso (empaquetado)

Dimensions/Weight (packed)

48x198x107.5 mm / 0.97 kg
More Information
EAN8430549410015
SystemDTT
SERIE12Vdc
ColorBlue
Power supplyMonocanal
Feed Power 12 Vc
Current (mA)4500
Outputs1
Product BrandTerra
