Nimo 24 VDC 200 mA Power Supply for Mast Amplifier with 2 Outputs

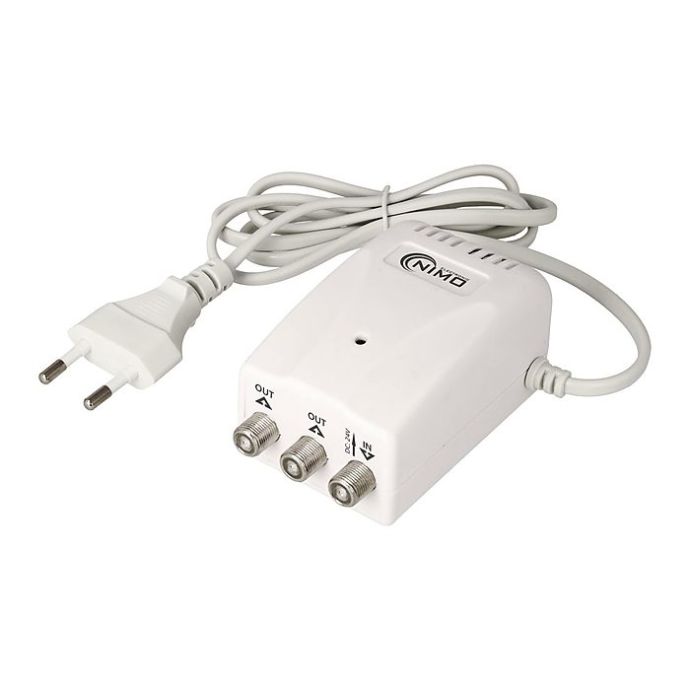

Nimo ACTV151 power supply for mast amplifier with 2 outputs
The Nimo ACTV151 is a switched-mode power supply designed to power TV aerial mast amplifiers from indoors. It injects 24 VDC through the same coaxial cable carrying the signal, providing a compact solution for DTT installations with two television points.
It has one input and two outputs with F connectors. Its integrated splitter divides the amplified terrestrial TV signal between both outputs, covering 5 to 862 MHz with an insertion loss of no more than 4.7 dB and return losses of at least 12 dB.
Within the range of power supplies for mast amplifiers, this model delivers 24 VDC with a maximum current of 200 mA. It is suitable for new DTT installations and for replacing an equivalent power supply, particularly when using Nimo ACTV149 or ACTV150 amplifiers.
Its indoor surface-mounted design and two RF outputs remove the need for an external splitter when only two branches are required. Its operating bandwidth is limited to 862 MHz, so it must not be used to distribute satellite intermediate-frequency signals or to power equipment requiring a different voltage.
Reference: NIMACTV151
