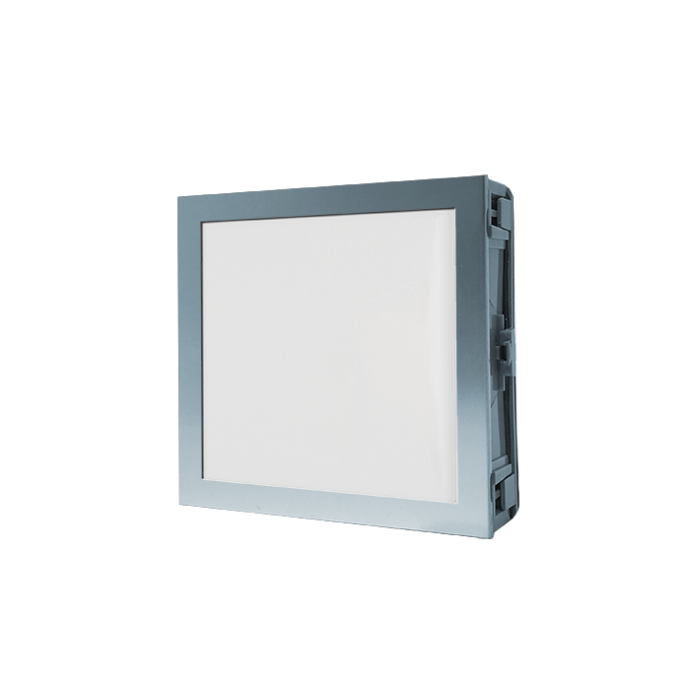

Illuminated Module Metal Finish Ultra UT9240M

SKU

COMUT9240M

Brands: Comelit

Availability: In stock

Delivery: 24/48 Hours

€61.92 Tax included

Informative module for backlit entrance panel, compatible with all systems. Ultra series in metal version.

It has a sensor that automatically turns off the backlighting of the card holders during the day. The illumination of the card holder is white.

Made of metal and treated with polymethylmethacrylate to resist the sun's UV rays, thus preventing it from turning yellow over time.

Dimensions: 100x90x35mm.

Technical Specifications of the Illuminated Module Metal Finish Ultra UT9240M

METAL ULTRA INFORMATION MODULE

GENERAL INFORMATION
Tipe	Modular
Height(mm)	90
Width(mm)	100
Depth(mm)	35
Product color	Aluminum, Transparent
Flush mounting	Yes, with a dedicated accessory
Wall mount	Yes, with a dedicated accessory

COMPATIBLE SYSTEMS
Audio/video Simplebus 2 with power supply art. 4888C	Yes
Audio/video Simplebus 2 with power supply art. 1210/1210A	Yes
Audio Simplebus 2 with power supply art. 1210/1210A	Yes
Audio Simplebus 1	Yes
ViP	Yes

ELECTRICAL CHARACTERISTICS
Power supply type	Power supply from the video door entry bus
Power supply	33VDC
Maximum absorption (W)	0,4

HARDWARE FEATURES
Backlight color	white, off

ENVIRONMENTAL AND COMPLIANCE CHARACTERISTICS
IP protection index	IP65
Vandal resistant rating (Código IK)	IK08
Operating temperature (°C)	-25 ÷ 55

METAL ULTRA INFORMATION MODULE
ENVIRONMENTAL AND COMPLIANCE CHARACTERISTICS
Operating humidity(RH max) (%)	25 ÷ 95
Environmental class	IV
CE certifications	RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
