Budget Kit TDT 62dB maximum + cable

Extended information about the 62dB Budget DTT Kit with 20m Cable

Practical applications of the 62dB Budget DTT Kit with 20m Cable

Example 1. Upgrading DTT reception in a single-family home

An installer can use this kit to replace an ageing antenna, a mast amplifier without LTE filtering and deteriorated coaxial cable. The DAT BOSS antenna is aligned with the transmitter, the SMB335 is installed close to the antenna and the two-output power supply is fitted indoors to restore signal margin before distribution.

Example 2. New installation with variable UHF signal and two indoor branches

In a property without an existing television system, the technician can mount the antenna on a suitable support, install the supplied RG-6 cable and power the mast equipment through the SMB301. Its two RF outputs can start two indoor branches, provided that signal levels and distribution losses are measured before adjusting the amplifier.

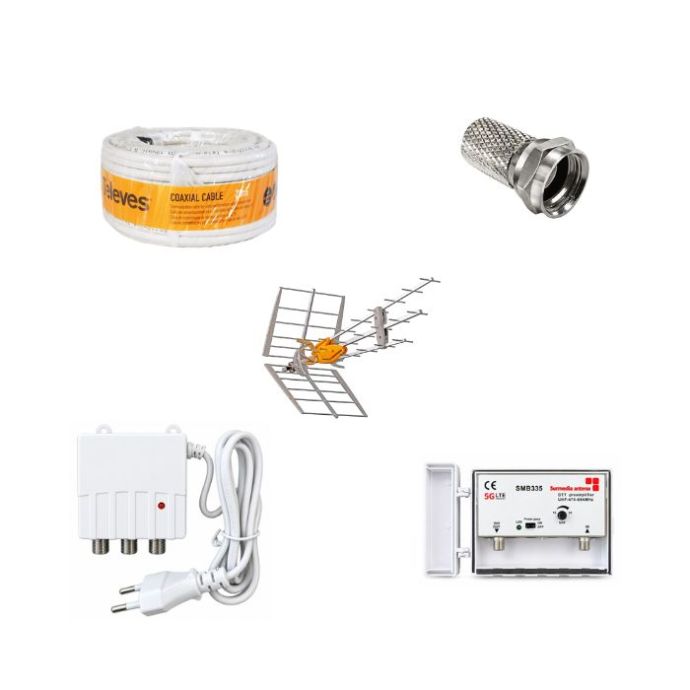

Package contents of the 62dB Budget DTT Kit with 20m Cable

• 1 Televes DAT BOSS UHF LTE 5G antenna, reference 149921: 42dBi automatic gain in BOSS mode, 17dBi in passive mode and high directivity.
• 1 Surmedia SMB335 mast amplifier: single UHF input, up to 30dB adjustable gain, LTE 5G filtering and outdoor enclosure.
• 1 Surmedia SMB301 power supply: 24V DC, 100mA and two RF outputs.
• 1 Televes 435501 coaxial cable reel: 20m of class A+ triple-shielded RG-6 cable with a white indoor sheath.
• 5 screw-on male F connectors for 6.6mm RG-6 coaxial cable.

Technical specifications of the 62dB Budget DTT Kit with 20m Cable
