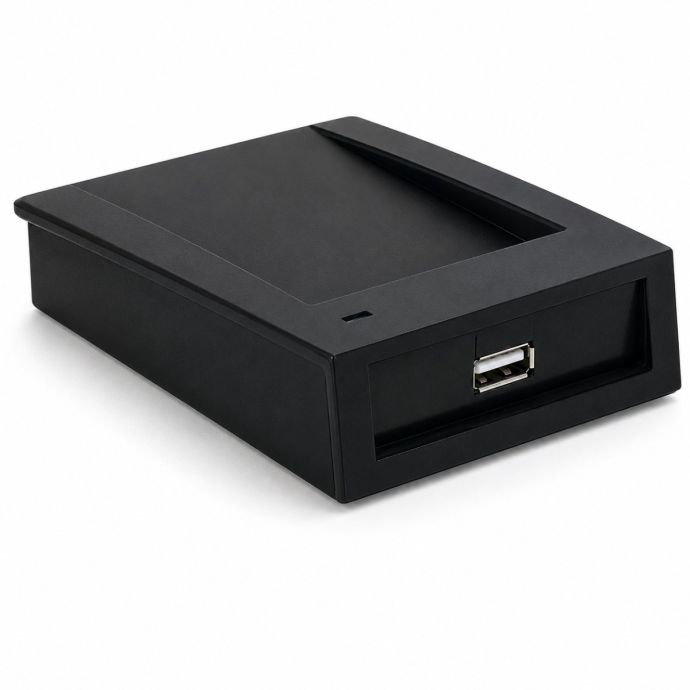

The Dahua DHI-ASM100-V1 Mifare card enrollment reader simplifies credential management in offices, business centers, and corporate facilities where a large number of users must be registered. Thanks to its 13.56 MHz RFID technology and Plug & Play USB connectivity, it allows administrators to quickly enroll, modify, and verify cards directly from the access control management software.
Its compact design and easy installation make it a practical solution for security system administrators who need to streamline credential issuance without requiring additional hardware. USB-powered operation further simplifies deployment and day-to-day use.
In residential complexes, apartment buildings, and smart facilities, the DHI-ASM100-V1 enables efficient programming and management of Mifare cards for residents, maintenance personnel, and authorized visitors. Its reliable operation and proximity reading capability ensure secure credential administration.
Access control installers and system integrators will find this device particularly useful for new installations, system expansions, or replacement projects involving Dahua Mifare-based access control systems, reducing setup and maintenance time while improving operational efficiency.
| Brand | Dahua |
| Model | DHI-ASM100-V1 |
| SKU | DAH-ASM100-V1 |
| Product Type | RFID card enrollment and programming reader |
| Reading Technology | Mifare |
| Operating Frequency | 13.56 MHz |
| Compatible Card Type | Mifare IC Cards |
| Processor | 32-bit processor |
| Reading Distance | Up to 5 cm |
| Communication Interface | USB |
| Installation | Plug & Play |
| Power Supply | 5V DC via USB port |
| Maximum Current Consumption | 100 mA |
| Status Indicator | LED indicator |
| Audible Indicator | Built-in buzzer |
| Installation Type | Desktop |
| Main Application | Registration, enrollment, and programming of Mifare cards for access control systems |
| Compatibility | Dahua access control systems supporting Mifare technology |
| Usage Environment | Indoor |
| Operating Temperature | -30°C to +60°C |
| Relative Humidity | ≤95% non-condensing |
| Housing Material | High-strength ABS |
| Color | Black |
| Dimensions | 105 x 75 x 20 mm |
| Weight | 180 g |
| Certifications | CE and FCC |
| Manufacturer Reference | DHI-ASM100-V1 |
| EAN | 6923172521613 |
|---|---|
| Hight | 0.050 |
| Length | 0.200 |
| Width | 0.100 |
| ACCESOS - SISTEMA | Readers |
| ACCESOS - SERIE | MIFARE |
| Identification | MIFARE Card/Keychain |
| Usar stock disponible | No |
| Product Brand | Hikvision |
| File | Label | Size | Download |
|---|---|---|---|
|
Ficha Técnica Lector de inscripción de tarjetas Mifare de Dahua | 324.7 KB | Download |
