Managed Switch 48 Ports L2+ Gigabit Ethernet 10/100/1000 TL-SG3452P

SKU

TLSG3452P

Brands: Tplink

Availability: On request

Delivery: 1 to 7 days

€778.41 Tax included

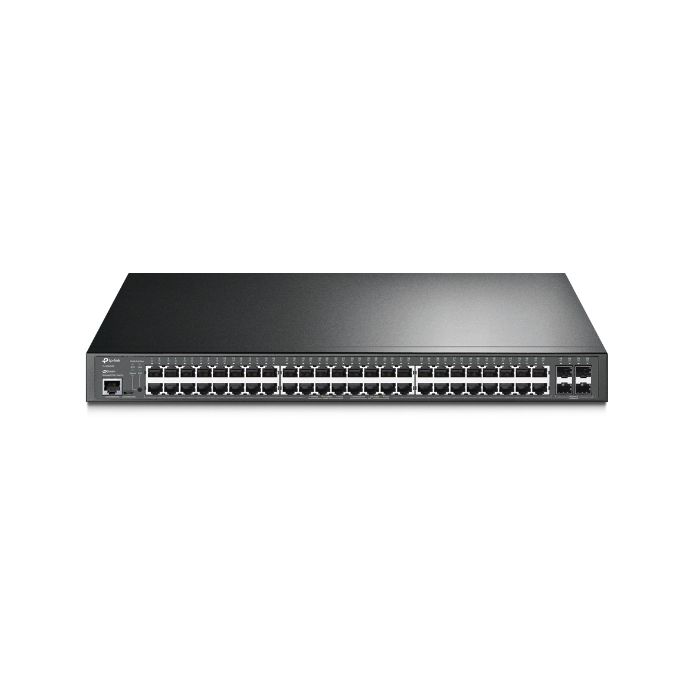

Managed Switch 48 Ports L2+ Gigabit Ethernet 10/100/1000 TL-SG3452P

This Tp-Link switch is managed and works at the L2/L2+ layer. It has 48 RJ-45 Ethernet switching ports (10/100/1000 Gigabit Ethernet), suitable for a complete Omada network. Next to them, you will find 4 gigabit SFP slots, which provide this switch with high speed connections. It also includes an RJ-45 console port and a micro-SD.

You will be able to control up to 16,000 MAC address entries with a switching capacity of 104Gbits/s. Management is centralized in the cloud, providing SDN solutions to make your network more efficient.

Details

Technical Specifications of the Managed Switch 48 Ports L2+ Gigabit Ethernet 10/100/1000 TL-SG3452P

HARDWARE FEATURES
Interface	• 48 10/100/1000 Mbps RJ45 ports • 4 Gigabit SFP slots • 1 RJ45 console port • 1 micro-USB console port
Number of Fans	3
Power supply	100-240 V AC~50/60 Hz
Ports PoE+ (RJ45)	• Standard: compatible with 802.3at / af • PoE + ports: 48 ports, up to 30 W per port • Total PoE: 384W
Dimensions	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting	Montaje en Rack
Maximum Power Consumption	52,53 W (110 V / 60 Hz) (no PD connected) 485,4 W (110 V / 60 Hz) (with 384 W PD connected)
Max Heat Dissipation	179,13 BTU / h (110 V / 60 Hz) (no PD connected) 1656,19 BTU / h (110 V / 60 Hz) (with 384 W PD connected)

PERFORMANCE
Switching Capacity	104 Gbps
Packet Forwarding Rate	77.4 Mpps
MAC Address Table	16 K
Jumbo-Frame	9 KB

SOFTWARE FEATURES
Quality of service	• 8 priority queues • 802.1p CoS / DSCP priority • Queue programming - SP (strict priority) - WRR (Weighted Round Robin) - SP + WRR • Bandwidth Control - Port/flow based classification limitation • Smoother performance • Action for flows - Mirror (to compatible interface) - Redirect (to compatible interface) - Rate limit - QoS Observation
Characteristics L2 y L2+	• Add a link - Static link aggregation -LACP 802.3ad - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1wRSTP - MSTP 802.1s - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback detection - Port based - VLAN based • Flow control - 802.3x flow control - HOL lockout prevention • reflection - Port Mirroring - CPU mirroring - Twelve fifty-nine - many to one - Tx/Rx/Both
Multicast L2	• Supports IGMP 511 groups (IPv4, IPv6) • IGMP Snooping -IGMP v1/v2/v3 Snooping - quick exit - IGMP Snooping query - IGMP authentication • IGMP authentication • MVR • MLD inquiry - MLD Inquiry v1 / v2 - quick exit - MLD Inquiry Consultation - Static group configuration - Limited IP multicast • Multicast filtering: 256 profiles and 16 entries per profile
VLAN	• VLAN group - Maximum 4K VLAN groups • 802.1q tagged VLAN • MAC VLANs: 48 entries • Protocol VLAN: protocol template 16, protocol VLAN 16 • GVRPS • VLAN VPN (QinQ) - QinQ based on ports - Selective QinQ • Voice VLAN
Access Control List	• ACL based on time •MAC ACLs - MAC of origin - Destination MAC -VLAN-ID - User priority - Type of ether • IP ACLs - Source IP - Destination IP - Fragment - IP Protocol - TCP flag - TCP/UDP port -TOS DSCP/IP - User priority • Combined ACL • ACL packet content • IPv6 ACLs • Politics - reflection - Redirect - Rate limit - QoS Observation • ACL applies to port / VLAN
Security	• IP-MAC port binding - DHCP snooping - ARP inspection - IPv4 source protection • Link IPv6-MAC-Port - DHCPv6 snooping - ND detection - IPv6 source protection • DoS Defense • Static / dynamic port security - Up to 64 MAC addresses per port • Broadcast / multicast / unicast storm control - kbps/ratio/pps control mode • Access control based on IP / Port / MAC • 802.1X - Port based authentication - Mac based authentication - VLAN assignment -MAB - Guest VLAN - Supports Radius authentication and responsibility • AAA (including TACACS +) • Port isolation • Secure web management via HTTPS with SSLv3 / TLS 1.2 • Secure command line interface (CLI) management with SSHv1 / SSHv2
IPv6	• IPv6 dual IPv4 / IPv6 • Multicast Listener Detection (MLD) detection • IPv6 ACLs • IPv6 interface • Static IPv6 routing • IPv6 Neighbor Discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6 / UDPv6 • IPv6 applications -DHCPv6 client - Ping6 - Tracert6 -Telnet (v6) -IPv6 SNMP - IPv6 SSH -IPv6 SSL - Http / Https -TFTP IPv6
Characteristics L3	• 16 IPv4 / IPv6 interfaces • Static routing - 48 static routes • Static ARP • 316 ARP entries • proxy-ARP • Free ARP • DHCP server • DHCP relay • DHCP relay L2
Management	• Web-based GUI • Command Line Interface (CLI) via console port, telnet • SNMPv1 / v2c / v3 - Trap / Report - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP / BOOTP client • 802.1ab LLDP / LLDP-MED • Automatic DHCP installation • Dual Image, Dual Settings • CPU monitoring • Cable diagnostics • EEA • Password recovery • SNTP • System log
Advanced Features	• Support Omada hardware controller (OC200 / OC300), software controller, cloud-based controller • Automatic device discovery • Batch configuration • Firmware batch update • Smart network monitoring • Abnormal event warnings • Unified configuration • Reboot program • ZTP (zero-touch provisioning)**

OTROS
Certifications	CE, FCC, RoHS
Package content	• TL-SG3452P switch • Power cord • Quick Installation Guide • Rack mount kit • Rubber legs
Environmental factors	• Operating temperature: 0–40 ℃ (32–104 ℉); • Storage temperature: -40–70 ℃ (-40–158 ℉) • Operating humidity: 10 to 90% relative humidity non-condensing • Storage humidity: 5–90% relative humidity non-condensing
