Marine SIP ST2 CVP201 plate by Fermax

SKU
FER1677
Brands: Fermax
€734.05
Tax included
Availability: On request
1 to 7 days

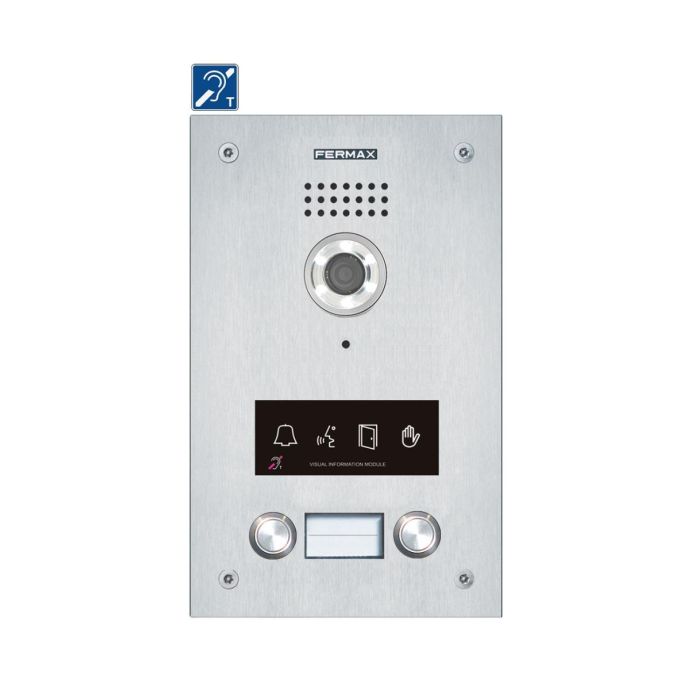

Fermax Marine SIP ST2 CVP201 Panel – 2 Buttons, HD Camera, Card Holder and One to One Module

The Fermax Marine SIP ST2 CVP201 (Ref. 1677) is an IP video intercom board specially designed for demanding environments, with two anti-vandal pushbuttons, HD camera and a robust front made of AISI 316L stainless steel with thickness of 2.5 mm. Your certification IP65 and IK09 It guarantees protection against impacts, humidity and corrosion.

Includes illuminated card holder , ideal for marking homes or offices in residential or business facilities with two units. The pushbuttons are designed with an anti-lock system and offer extremely reliable operation even in locations with intensive use.

The board integrates a módulo One to One (DDA), which shows through 4 LED icons the status of the call, conversation, open or busy channel. This module improves accessibility and provides clear visual confirmation to the end user.

In addition, SIP electronics allow programming via webserver, sequential P2P calls, and connection to two local or remote VoIP PBXs, offering exceptional versatility for professional installers. As usual in the Marine line, does not include the built-in box, which must be ordered independently depending on the type of assembly required.

Reference: FER1677

-
+

Expanded Information of the Fermax Marine SIP ST2 CVP201 Plate

Practical applications of the Fermax Marine SIP ST2 CVP201 Plate

1. Buildings or entrances with two independent homes or units

Your configuration with two pushbuttons It is perfect for portals with two homes, access to dual offices or shared commercial premises. The 2 Mpx HD camera ensures a clear view on the monitor or SIP device, even in environments with irregular lighting. The integrated card holder makes it easy to identify each doorbell clearly and professionally.

2. Advanced SIP installations with accessibility needs

He módulo One to One , offers visual signals that improve accessibility: call, conversation, door opening and busy channel. This makes it an excellent option for environments where clear indicators are required, including public buildings, accessible offices or projects where regulations require the implementation of visual warning systems.

Technical Specifications – Fermax Marine SIP ST2 CVP201 (Ref. 1677)

FEATURE DETAIL
Reference 1677
Model Marine SIP ST2 CVP201 Board
Pushbuttons 2 × Anti-vandal pushbuttons with anti-lock system
card holder Yeah
Material AISI 316L stainless steel – 2.5 mm
Protection IP65 / IK09
Camera HD 2 Mpx, H.264, 720p/1080p
Module included One to One (DDA) – 4 LED icons (call, talk, open, busy channel)
SIP protocols SIP v1/v2 TCP/UDP/TLS, RTP/RTCP/SRTP
Audio G.711A/U, G.729A/B, iLBC, G.723.1, G.726, G.722, Opus
Video H.264
Connectivity Ethernet 10/100, IPv4/IPv6, DHCP, PPoE, VLAN, VPN
Relays 2 × C-N/O / N/C, 30V/2A cc – 125V/0,5A ca
Programming Integrated web server
Compatibility MEET / MEET ME / Centralitas SIP
Feeding PoE Clase 3 (30W) o 12 Vcc 1A
Source for DDA 24 Vdc / 2A (Ref. 4840) if inductive loop is used
Temperature -30 ºC and 60 ºC
Humidity Up to 95%, no condensation
Weight 1,318 kg (packaged)
Packaging dimensions 8,2 × 25,2 × 16,4 cm
Embedded box Not included – Ref. F04642
Surface box Not included – Ref. F04646
More Information
EAN 8424299016771
Hight 0.000
Length 0.000
Width 0.000
ACCESOS - SISTEMA SIP
ACCESOS - SERIE MARINE
Color Silver
Usar stock disponible No
Product Brand Fermax
Write Your Own Review
You're reviewing:Marine SIP ST2 CVP201 plate by Fermax
Your Rating
File Label Size Download
pdf Ficha Técnica Placa Fermax Marine SIP ST2 CVP201 114.2 KB Download
pdf Declaración de Conformidad Placa Fermax Marine SIP ST2 CVP201 137.5 KB Download
pdf Manual Placa Fermax Marine SIP ST2 CVP201 2 MB Download
