Mast Amplifier 2 UHF/VHF Inputs 1 Output 32dB Johansson

SKU

JOH7411

Brands: Johansson

Availability: On request

Delivery: 1 to 7 days

€21.56 Tax included

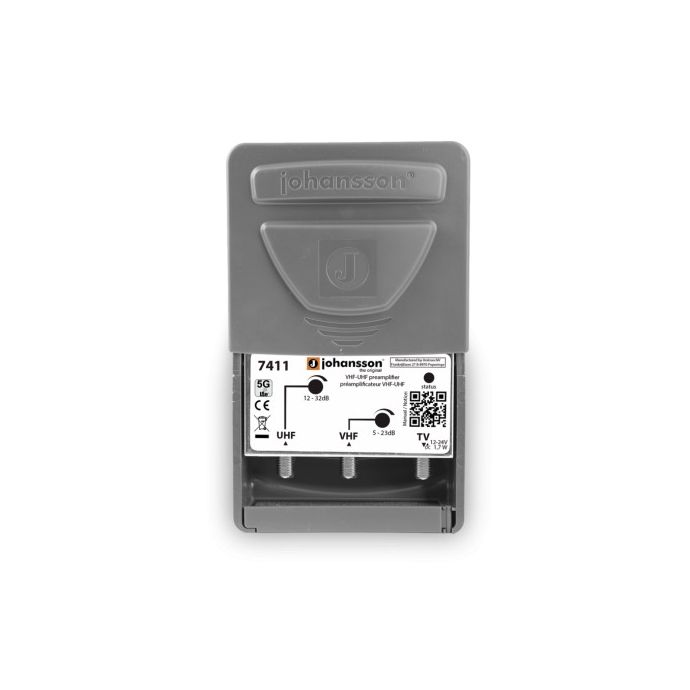

Mast Amplifier with 2 UHF/VHF Inputs 32dB Ref. 7411 by Johansson

An amplifier is an active device that amplifies television signals (whether terrestrial or satellite). It is usually placed on the antenna mast, so they usually come in watertight boxes that withstand external atmospheric conditions. The amplifier is used when we do not have sufficient signal level and we need to expand it.

This mast amplifier has 2 inputs, one for UHF and the other for VHF with a gain of 32dB, with female F connectors. And it has a broadband output.

The gain is adjustable in both cases with 5-23dB in the case of VHF and 12-32dB in UHF. It is prepared for 5G rejection and has a low noise figure.

It works with a voltage of 12-24Vdc. It incorporates a status indication LED. The amplifier is very compact, measuring 122x98x56mm. The amplifier is well inside a chest that protects it from the elements.

Details

Technical Specifications of the Johansson Mast Amplifier with 2 UHF/VHF 32dB Inputs

7411
Input	-	VHF (BIII/DAB)	UHF (Ch. 21- 48)
Frequency range	MHz	170-240	470-694
Gain	dB	5 - 23	12 - 32
Noise Figure	dB	2.5	1.5
Max. input level	dBµV	95	78
Max.output level (IM3: 2c/-60dB)	dBµV	111	108
Consumption	-	1,7 W / 120 mA (12V) - 70 mA (24V)
Connectors	-	F
Mounting	-	Mast or wall
Dimensions	mm	122 x 98 x 56

More Information

More Information
EAN	2074110000012
System	DTT
SERIE	F-connector
Color	Silver
Type	Mast amplifier
Entorno	Interior
Input signal	UHF, VHF
# Inputs	2
Outputs	1
Gain	32
Max. output level Ganancia (dB/uV)	111
LTE compatible	Yes
Current bypass	Terrestrial
Product Brand	Johansson
