Programmable Central with 4 FM/DAB-VHF/2xUHF Inputs 60dB Triax

SKU

TRITMB1500

Brands: TRIAX

Availability: On request

Delivery: 1 to 7 days

€255.83 Tax included

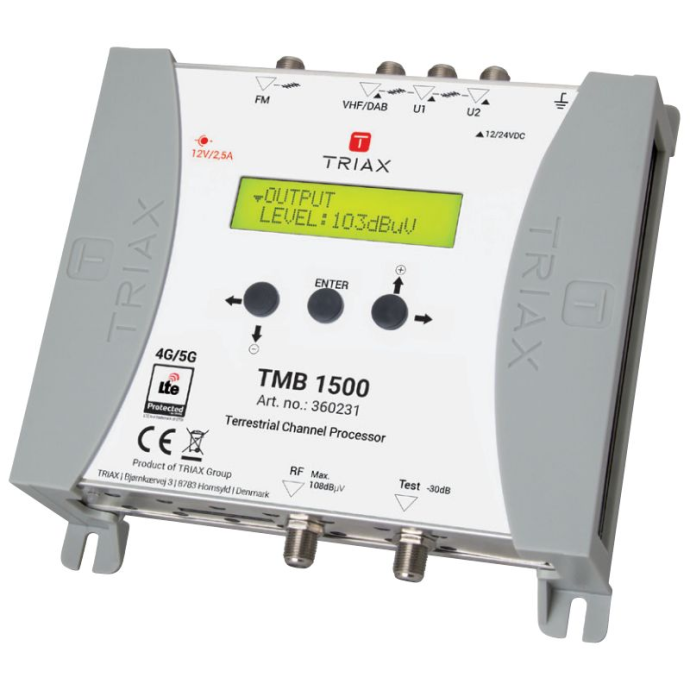

TMB 1500 4 Input Programmable Central

This programmable center can receive television signals from multiple terrestrial antennas. It has 4 inputs: FM/DAB-VHF/2xUHF.

It is capable of combining filtering, conversion, level equalization and channel amplification, increasing the total signal of the TV distribution network. Frequently used in multiple dwellings or hotels.

Among its functions we find: lock with security code, automatic change of rejection between 4G and 5G LTE, flexible matrix with 15 filters to individually process any output channel, 50 dB suppression of adjacent channels, etc.

All these features make it a great option as a programmable control panel.

Includes desktop power supply with European plug.

Details

Technical Specifications of the TMB 1500 4 Input Programmable Central

ORDER INFORMATION

EAN Number

5702663602311

ELECTRICAL

Impedance

75 Ω

CONNECTORS

Number of inputs	1xFM 1xDAB/VHF 2xUHF
Number of outputs	1x FM/DAB/VHF/UHF + 1x Test port

FREQUENCY RANGE

Frequency Range FM	88...108 MHz
Frequency Range DAB	174...240 MHz
Frequency range VHF	174...240 MHz
Frequency range UHF	470...862 MHz
Number of channels	> 50 by 15 filters
LTE protection	Auto: 694/790/OFF

GAIN

Gain FM	35 dB
Gain - VHF	60 dB
Gain - UHF	60 dB
Slope	9 dB

CHARACTERISTICS

MER	35 dB
Input Level - FM	37...77 dBµV
Input Level - VHF	45...109 dBµV
Input Level - UHF	45...109 dBµV
Output level FM	113 dBµV
Output level @ 60dB IMR3 - UHF	115 dBµV
Output level @ 60dB IMR3 - VHF	115 dBµV
Output Level VHF/UHF 1MUX	108 dBµV
Output Level VHF/UHF 15MUX	105 dBµV
Selectivity	50 dB/1MHz
Test Point	- 30 dB

LOSS

Attenuator FM	0...20 dB
Attenuator Sum Output	0...20 dB

OPERATIONAL

AC Supply voltage	100...240 VAC
Power Consumption (typ.)	12 W
PSU/adapter INFO	Included Euro Plug (CEE 7/17)
Remote Voltage Preamp	12/24 VDC
Temperature - operating	-5...50 °C

MECHANICAL

Dimensions product (H x D x W)	165 x58 x165 mm
Packing QTY	1
Product Height	164 mm
Product Width	167 mm
Product Depth	153 mm
Packaging Height	0.073 m
Packaging Width	0.270 m
Packaging Depth	0.228 m
Packaging Volume	0.004 m3
Net Weight	0.776 kg
Tara Weight	0.254 kg
Total Weight	1.030 kg

More Information

More Information
EAN	5702663602311
System	DTT
SERIE	F-connector
Color	Silver
Type	Programmable station
Entorno	Interior
Input signal	DAB, FM, UHF, VHF
# Inputs	4
Outputs	1
Gain	60
Max. output level Ganancia (dB/uV)	109
LTE compatible	Yes
Current bypass	Terrestrial
Product Brand	TRIAX
