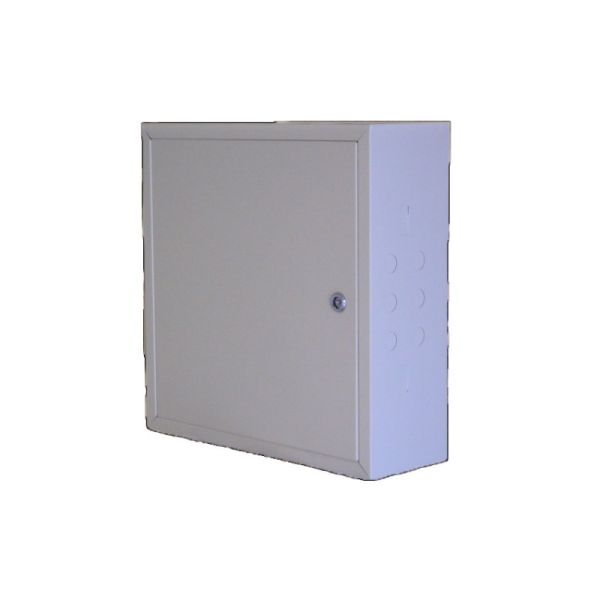

Metal cabinet 45x45x15cm with wooden bottom and double security key

SKU
AMP070
Brands: Ampliantena
€56.36
Tax included
Availability: In stock
24/48 Hours

Secondary ICT 45x45x15cm Enclosure with Wooden Back Panel and Double Security Key

The AMP070 Secondary ICT Enclosure is designed to organise, protect and provide technical access to telecommunications cabling in the secondary network of buildings. It is a reliable solution for professional ICT installations where a metal enclosure with standard dimensions, secure access and practical cable management is required.

This secondary enclosure works within Common Telecommunications Infrastructure (ICT) systems and is mainly used as a connection point between general cable runs and community branch lines. Its metal structure with water-repellent wooden back panel helps installers arrange cabling, mount internal elements and maintain a neat distribution point in buildings with 1 to 20 PAUs.

The AMP070 is suitable for new installations, refurbishments and secondary network upgrades, not just as a replacement part. Its pre-punched cable entries make cable routing easier, while its removable door system without a fixed hinge allows full access to the enclosure during installation, maintenance or future modifications.

With cold-rolled steel construction, anti-corrosion treatment, matt white RAL 9010 finish and double security key locking system, this ICT enclosure helps protect technical cabling from unauthorised access. It can be combined with other secondary ICT enclosures or selected alongside related ICT enclosures for complete telecommunications projects.

Reference: AMP070

-
+

Extended information about Secondary ICT 45x45x15cm Enclosure with Wooden Back Panel and Double Security Key

Practical applications of the Secondary ICT 45x45x15cm Enclosure with Wooden Back Panel and Double Security Key

Example 1: secondary ICT network installation in a residential building.

In a new-build or refurbishment project with several dwellings, the installer can use the AMP070 Secondary ICT Enclosure as a transition and organisation point between the main cable route and the branch lines leading to the PAUs. Its standard 45x45x15 cm format helps manage cable routing with more controlled bending radius and allows spare cable loops to be stored for future extensions or maintenance work.

Example 2: replacing a damaged enclosure in a communal installation.

In a building where the existing enclosure offers poor protection, limited working access or insufficient control over technical entry, this metal ICT enclosure can be used to renew the secondary distribution point while keeping a format suitable for the existing telecom network. The removable door system without a fixed hinge makes intervention easier in narrow areas, while the double security key helps restrict access to authorised technical personnel.

Packaging contents of the Secondary ICT 45x45x15cm Enclosure with Wooden Back Panel and Double Security Key

  • 1 AMP070 ICT2 metal secondary enclosure, 450x450x150 mm.
  • Integrated water-repellent wooden back panel.
  • Metal door with double security key locking system.

Technical specifications Secondary ICT 45x45x15cm Enclosure with Wooden Back Panel and Double Security Key

Feature Detail
SKU AMP070
Brand Ampliantena
Product type Secondary enclosure / ICT2 metal cabinet
Main use Organisation and protection of cabling in building secondary networks
Compatible system Common Telecommunications Infrastructure (ICT)
Recommended application Buildings with 1 to 20 PAUs
Referenced regulation RD 346/2011 for ICT installations
Main material Cold-rolled steel sheet
Internal back panel Water-repellent wood
Treatment Anti-corrosion treatment
Finish Polyester powder coating
Colour Matt white RAL 9010
Dimensions 450 x 450 x 150 mm
Number of doors 1
Door system Fitted/removable system without fixed hinge for easier access
Locking system Double security key
Master key Yes, 1 per 15 units according to the technical sheet
Cable entry Pre-punched entries to facilitate cable connection
Protection in recessed installation IP55
Protection in surface installation IP34
Technical function Link between general cable runs and community branch lines
Maintenance advantage Allows spare cable loops to be stored for future extensions
More Information
Hight 47.000
Length 17.000
Width 47.000
CTI - System Register
CTI - Serie Metálico
Color White
Usar stock disponible No
Product Brand Ampliantena
