Nevoswitch 5 outputs x 5 outputs x 12 de floors"F" Terminal/Cascade

SKU
TEL714504
Brands: Televes
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€253.85 Tax included
Televes

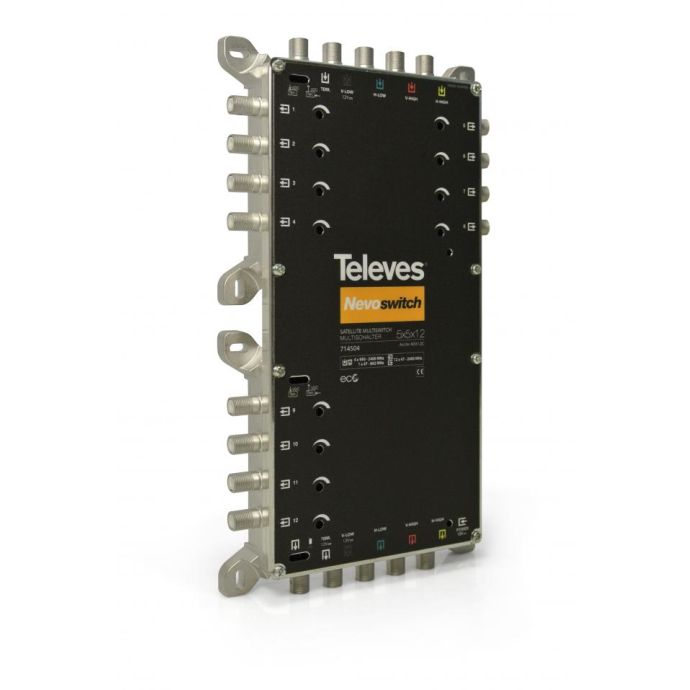

Nevoswitch 5 inputs x 5 outputs x 12 of floor "F" Terminal/Cascade


Nevoswitch 5 inputs x 5 outputs x 12 floors "F" Terminal/Cascade. Ref: 714504. This is a configurable element to better adapt the signal. Thanks to its small size and its design it is easy to handle.

12 dB potentiometer on each output to improve the level individually. It has a switch to feed terrestrial previous or the passage of current.

Made of zamak, it is small in size and compact. It has color identification both at the input and at the output.

The multiswitch has an ECO mode to reduce consumption, as well as a switch to change its use between cascade and star.

The power supply can be done through the satellite receiver autonomously, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.

Nevoswitch Technical Specifications 5 inputs x 5 outputs x 12 plant "F" Terminal/Cascade

Characteristics:

Reduced size.
Configurable.
Independent amplification of lines.
Multiple feeding options.
Independent regulation.



Type     5x5x12
Frequency range MHz SAT 950 ... 2200 / 2400
TERR 47 ... 862
Input level dBμV SAT 105
TERR 92
Through losses dB SAT 3 ... 6 / 8
TERR 4
Tap losses. (2) 1..8 /
9..16 / 17..24 /
25..32
dB SAT 1(1) / 2 / - / -
TERR 2 / 4 / - / -
Isolation dB H/V >30
Users >25
DC pass   In-Out / Out-In
Max. total consump mA PSU 85
SAT STB(4) 35
Temp. range. ºC   –5 ... +45 ºC
Protection level IP   IP20
More Information
EAN8424450172810
SystemSatellite
SERIENevoswitch
TypeCascading, Final
# Input satellites4
# Terrestrial inputs1
# Inputs5
#User outputs12
Loos (dB)5
LNB typeQuattro
Product BrandTeleves
