Nevoswitch 5 inputs x 5 outputs x 32 floors "F" Terminal/Cascade

Nevoswitch 5 inputs x 5 outputs x 32 of floor "F" Terminal/Cascade

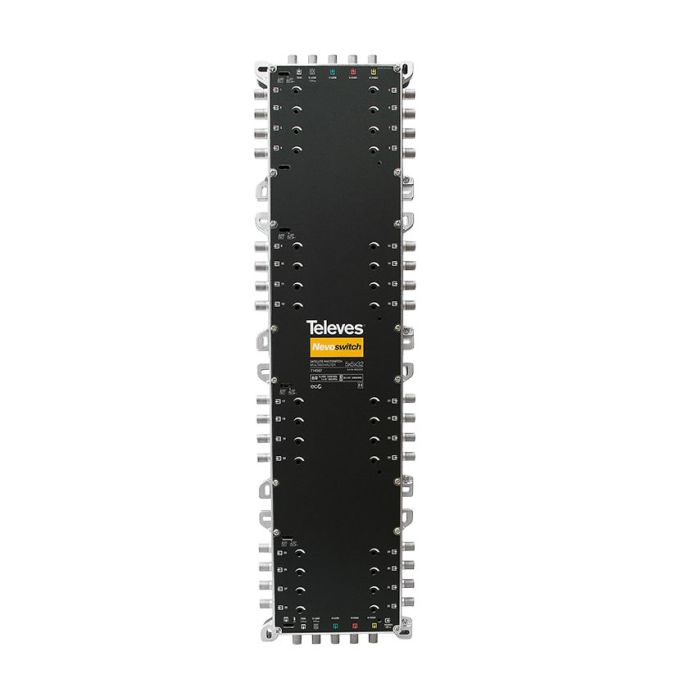

Nevoswitch 5 inputs x 5 outputs x 32 floors "F" Terminal/Cascade. Ref: 714507. This is a configurable element to better adapt the signal. Thanks to its small size and its design it is easy to handle.
12 dB potentiometer on each output to improve the level individually. It has a switch to feed terrestrial previous or the passage of current.
Made of zamak, it is small in size and compact. It has color identification both at the input and at the output.
The multiswitch has an ECO mode to reduce consumption, as well as a switch to change its use between cascade and star.
The power supply can be done through the satellite receiver autonomously, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.
Nevoswitch Technical Specifications 5 inputs x 5 outputs x 32 plant "F" Terminal/Cascade
Characteristics:
Reduced size.
Configurable.
Independent amplification of lines.
Multiple feeding options.
Independent regulation.
Type | 5x5x32 | ||
Frequency range | MHz | SAT | 950 ... 2200 / 2400 |
TERR | 47 ... 862 | ||
Input level | dBμV | SAT | 105 |
TERR | 92 | ||
Through losses | dB | SAT | 6 ... 12 / 16 |
TERR | 9 | ||
Tap losses. (2) 1..8 / 9..16 / 17..24 / 25..32 |
dB | SAT | 1(1) / 2 / 5 / 8 |
TERR | 2 / 4 / 6 / 8 | ||
Isolation | dB | H/V | >30 |
Users | >25 | ||
DC pass | In-Out / Out-In | ||
Max. total consump | mA | PSU | 210 |
SAT STB(4) | 35 | ||
Temp. range. | ºC | –5 ... +45 ºC | |
Protection level | IP | IP20 |
EAN | 8424450172841 |
---|---|
System | Satellite |
SERIE | Nevoswitch |
Type | Cascading, Final |
# Input satellites | 4 |
# Terrestrial inputs | 1 |
# Inputs | 5 |
#User outputs | 32 |
Loos (dB) | 10 |
LNB type | Quattro |
Product Brand | Televes |
Icon | Label | Size | Download |
---|---|---|---|
|
Ficha Técnica Nevoswitch 714507 | 129.7 KB | Download |
