NVR recorder 8 IP channels 4MP

SKU
HWN-2108MH
Brands: Hikvision
Availability: In stock
24/48 Hours
€72.65 Tax included
Hikvision

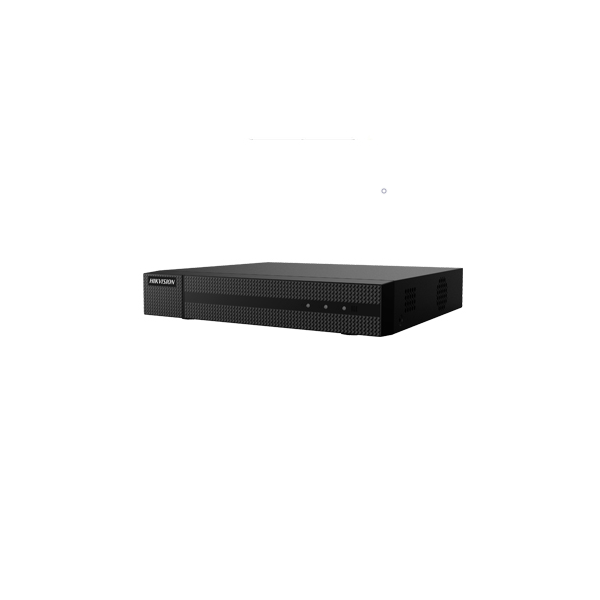

NVR Recorder Hikvision HWN-2108MH

NVR recorder with 8 IP channels and a maximum resolution of 4 Mpx for IP surveillance cameras. You can connect up to 8 cameras simultaneously.

The recorder also includes a two-way RCA audio channel for cameras that include a microphone and speaker. Compression modes H.265 + / H.265 / H.264 + / H.264.

The recorder has space to install an HDD hard disk of up to 6TB. It also includes 2 USB ports for external storage. HDMI Full HD and VGA video outputs.

Technical characteristics of the Hikvision HWN-2108MH NVR Recorder

Hikvision 4 Mpx NVR recorder with 8 LAN ports and bidirectional audio.

What are the main features of the Hikvision HWN-2108MHrecorder?

  • NVR for IP cameras
  • 8 CH
  • 40 Mbps bandwidth supported
  • Maximum resolution 4 Megapixel
  • Compression H.265+/H.265/H.264+/H.264
  • Full HD HDMI and VGA Output
  • IP Dual Stream Access
  • Mouse
  • Space for 1 HDD
  • WEB, CMS and Smartphone interface
  • ONVIF Compatible

What technical specifications does the Hikvision HWN-2108MH recorder have?

Brand Hikvision
Range HiWatch Series
Inputs for IP cameras LAN port up to 8 channels
IP compatible cameras HIKVISION, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 1 HDMI Full HD, 1 VGA
Video compression format H.265+ / H.265 / H.264+ / H.264
Display resolution 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Total bandwidth 40 Mbps downstream / 60 Mbps upstream
Main Stream recording 4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Decoding capacity 1CH@6Mpx or 4CH@1080p
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Recording method Manual, programmed, motion detection, alarm
External Backup USB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory 1 SATA HDD 3.5" of up to 6 TB (not included)
Communication 2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet) / WiFi Module for communication
Remote access Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Power supply DC 12 V, 50/60 Hz
Dimensions / Weight 48 (H) x 315 (W) x 240 (D) mm / 1.0 Kg (without HDD)
More Information
EAN6941264092193
SystemIP/WiFi
SERIE4Mpx
IncludedMouse, Power supply
Event notifierYes
No. CCTV Recorder Inputs8 IP
Audio in ports1
Product BrandHikvision
