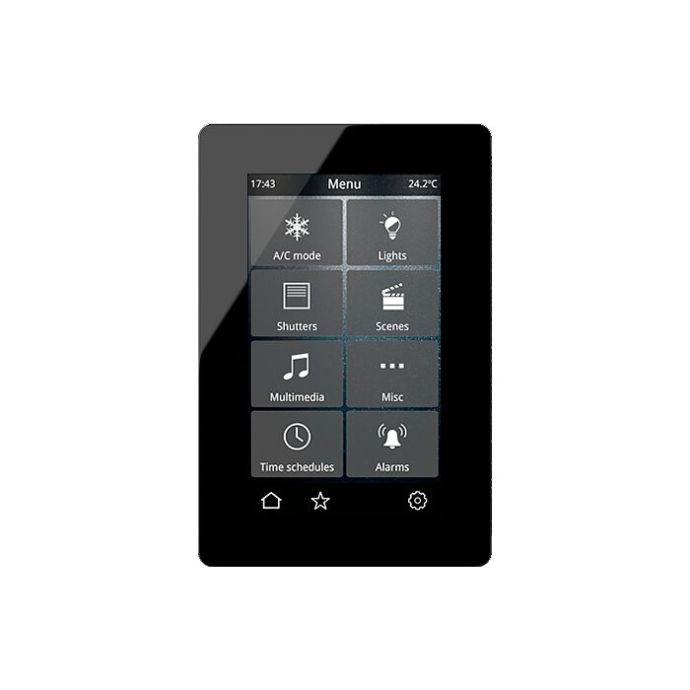

main product photo

Iddero VERSO 2 4.3" KNX Touch Screen in Black

SKU
VERSO2-B
Brands: Iddero
€380.13
Tax included
% Discount for professionals
Iddero
Availability: On request
1 to 7 days

4.3" Iddero VERSO 2 Capacitive KNX Touch Screen in Black

The Iddero VERSO 2 KNX touch screen centralises lighting, climate control, blinds, scenes and technical alarms through an intuitive 4.3-inch capacitive interface. Its black GLASS finish provides a discreet, professional appearance in homes, offices and smart buildings.

It connects directly to a KNX TP1 bus and supports up to 96 control functions across 12 configurable pages. Five touch gestures provide immediate access to frequently used commands, even when the display is off. Discover more solutions in our home automation range.

Its integrated temperature sensor and two independent thermostats enable zoned heating and cooling control. It can also monitor up to 96 configured KNX alarms, maintain an event history and manage four inputs as binary contacts or temperature probe inputs. It is designed for new installations, KNX system extensions and upgrades, rather than as a replacement part for a proprietary system.

Vertical or horizontal mounting, magnetic attachment and support for universal back boxes give professional installers greater flexibility on site. The communication line can be completed with a shielded KNX bus cable.

Reference: VERSO2-B

-
+

Extended information about the Iddero VERSO 2 4.3" KNX Touch Screen in Black

Practical applications of the Iddero VERSO 2 KNX Touch Screen

Example 1: Centralised room control in a KNX home

In a property where lighting, blinds and HVAC equipment are connected to the KNX bus, the integrator can install the Iddero VERSO 2 as the main control point in a living room or bedroom. Its configurable pages bring everyday controls together, while touch gestures can be assigned to immediate actions such as switching off all lights when leaving the room.

Example 2: Local HVAC and technical alarm monitoring

In an office, surgery or small commercial property, the installer can use its two thermostats to manage separate temperature zones and display notifications received from the KNX system. The event log assists with incident reviews, while the multifunction inputs can accommodate potential-free contacts or compatible temperature probes. Alarm detection must be provided by configured sensors, inputs or KNX objects: the touch screen displays, logs and manages these notifications but does not replace the corresponding detectors.

Package contents of the Iddero VERSO 2 KNX Touch Screen

  • 1 Iddero VERSO 2 KNX touch screen with black GLASS finish.

Technical specifications of the Iddero VERSO 2 KNX Touch Screen

Feature Specification
Brand Iddero
Reference VERSO2-B
Product type KNX touch screen and room controller
Finish Black GLASS
System KNX TP1
KNX connection Standard KNX TP1 connector
KNX bus consumption Typically 4 mA at 29 VDC
Control functions Up to 96 functions arranged across 12 configurable pages
Favourites User-editable favourites page
Backgrounds Configurable background images
Time schedules Up to 96 channels with 4 schedules per channel
Alarm monitoring Up to 96 alarms with integrated event log
Touch gestures 5 quick actions: 4 directional gestures and 1 multitouch gesture
Gesture availability Gestures remain available when the display is off
Scenes Internal scene controller
Thermostats 2 independent thermostats
Integrated sensor Temperature sensor with a range of 0 to 70°C
Sensor resolution 0.1°C
Sensor accuracy 1% at 25°C
Multifunction inputs 4 independent inputs
Input configuration Individually configurable as binary inputs or temperature probe inputs
Binary contacts Potential-free contacts
Detection time Typically 50 ms in switch/sensor mode
Minimum pulse width 10 ms in push-button mode
Input cable length Maximum recommended length of 50 m
Compatible probes Iddero TS-N1PB and TS-GLASS
Display 4.3" widescreen TFT display, 16:9 format
Resolution 272 × 480 pixels
Colour depth 24 bpp, 16.7 million colours
Contrast 500:1 typical
Luminance Minimum 350 cd/m², software adjustable
Backlight Low-consumption white LED with energy-saving mode
Touch technology Projected capacitive multitouch screen
Glass 0.7 mm chemically strengthened tempered glass
Installation orientation Portrait or landscape
External power supply 12–30 VDC
Maximum power consumption 2 W
Typical consumption 130 mA at 12 VDC; 70 mA at 24 VDC; 60 mA at 30 VDC
Power supply unit Not included
Expansion port USB 2.0 with Micro-USB Type-B connector
Real-time clock RTC with replaceable CR1220 backup battery
Installation Wall mounting with magnetic attachment
Compatible back box Universal square or round back box, not included
Iddero back box references E-C466 and E-C456
Flush installation Requires Iddero E-F401 accessory
Enclosure material ABS FR V0
Protection rating IP20
Front dimensions 81.2 × 122.4 mm
Overall depth 40.4 mm
Weight 155 g without mounting frame; 206 g with mounting frame
Operating temperature 0 to 55°C
Storage temperature -20 to 70°C
Relative humidity 10–90%, non-condensing
Directives 2014/30/EU, 2011/65/EU and 2012/19/EU
Harmonised standards EN 63044-5-1:2020, EN 63044-5-2:2020, EN 50581:2012 and EN 50419:2006

Power supply warning: the external power input requires 12–30 VDC. The 29 VDC KNX bus voltage must not be used as the external power supply.
