Electro DH 250V Quick-Connect Terminal Block with 1 Input and 5 Outputs
Electro DH 250V Quick-Connect Terminal Block with 1 Input and 5 Outputs

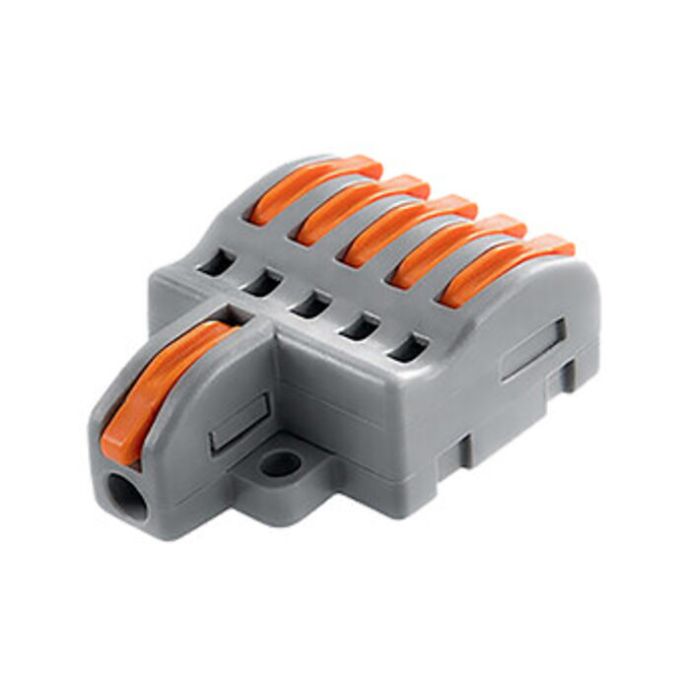

The Electro DH 10.797/4 quick-connect terminal block distributes one electrical line to five output points in a fast, organised and secure manner. Its clamping system replaces conventional screw terminal blocks and speeds up work inside junction boxes.
It features a single electrical channel with 1 input and 5 outputs, all connected to the same electrical potential. The levers operate a spring-pressure mechanism that holds each conductor firmly and helps reduce the risk of loose connections.
Designed for electrical installations with a specified voltage of 250V, it is particularly useful for installers working on lighting circuits, renovations and maintenance. It is suitable for new installations or replacing screw-type connections. The completed installation can be checked with an Electro DH digital multimeter, using suitable professional cutting and stripping tools to prepare the conductors.
Overall, this compact terminal provides a reusable connection without requiring a screwdriver. Conductors can be connected and disconnected whenever necessary, bearing in mind that the five outputs belong to the same electrical line and do not form electrically independent circuits.
Reference: ED10.797/4
