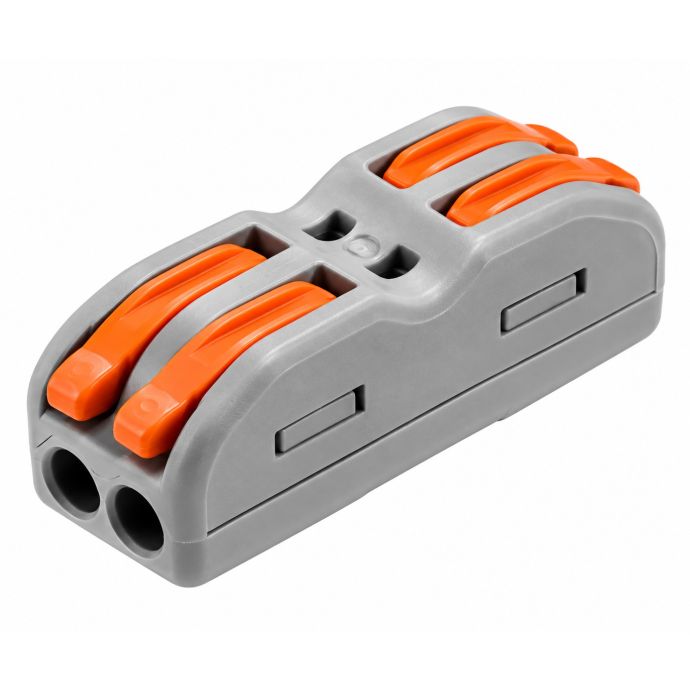

Electro DH 2-Input 2-Output 250V Quick Connection Terminal Block
Electro DH 250 V Quick Connection Terminal Block with 2 Inputs and 2 Outputs
The Electro DH quick connection terminal block is designed for making fast and secure electrical connections and branches without a screwdriver. Its compact format is suitable for junction boxes, lighting fixtures and confined installation spaces.
It features 2 inputs and 2 outputs to provide continuity for two independent electrical lines. It supports conductors with an indicated cross-section of up to 2.5 mm², is rated at 24 A and 250 V, and requires a 10 mm stripping length.
Its levers allow conductors to be inserted, removed and reconnected without the retightening associated with traditional screw terminal blocks. It is particularly useful for installers working with LED spotlights, downlights and lighting circuits, both in new installations and when replacing conventional terminal strips.
The insulated housing helps prevent accidental contact, while the test access enables electrical checks with a multimeter for electrical installations without dismantling the connection. Supplied as a pack of 5 units.
Reference: ED10.797/5
