ROVER TAB 5 ULTRA DVB-T2/S2/C Field Meter

SKU

HDTAB5ULTRA

Brands: ROVER

Availability: On request

Delivery: 1 to 7 days

€2,244.55 Tax included

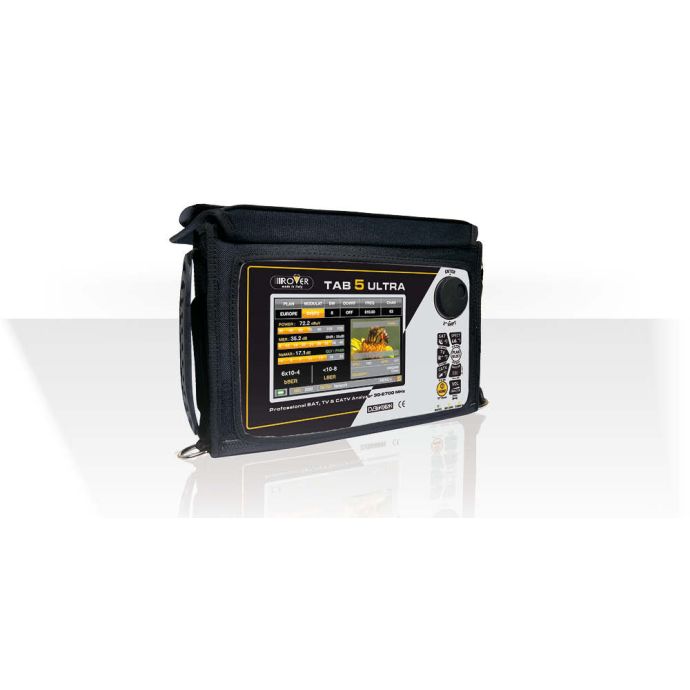

Field Meter HD TV, CATV and Radio ROVER TAB 5 ULTRA

TAB 5 Ultra combo professional field meter for analog and digital TV, SAT, CATV and Radio signals. Compatible with DVB-T/T2, DVB-S/S2 and DVB-C standards.

ROVER AUTODISCOVERY exclusive system that automatically detects and selects TV COFDM / QAM signals in both measurement and spectrum modes. Automatically identifies SAT, TV and CATV digital signals.

Offers MER, BER, PER LDPC, BCH power measurements, noise margin; as well as constellation, spectrum, echoes, pre-echoes and micro-echoes in real time.

Meter with high resolution, high brightness 5" TFT Touch screen. Battery life of 2 to 4 hours depending on use.

Available optical measurement functions, WiFi analyzer and HEVC H.265 decoding. Consult us for availability and prices.

Details

Professional Field Meter for TV, SAT, CATV and FM Radio

What technical specifications does the ROVER TAB 5 ULTRA Field Meter have?

SPECIAL FUNCTIONS

Exclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode
Automatically identifies all the signals with digital modulation SAT, TV and CATV
Automatic Assistant: Signal Quality analysis, Channel Scan memorization
Barscan TV & CATV function from 10 to 100 channels on one screen
Buzzer & Noise Margin real time graph for digital signals microinterruptions
Reflectometric measurements APP
Optical Input (opt.)
WI-FI analyzer (opt.)
HEVC H265 decoder (opt.)
SATELITE: DiSEqC, SCR, dCSS & Motorized antenna commands, SAT FINDER & SAT EXPERT
Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
Loggers: TV, SAT & combined with stop & go function
SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite
Free S.M.A.R.T. PC interface program and FW upgrades
OPTIONS*: Check the Cross reference

SPECIFICATIONS: MEASUREMENTS, SPECTRUM ANALYSIS & PICTURES

Frequency Range: TV, CATV & Radio: 30-1.000 MHz; SAT: 700–2.700 MHz
Frequency Resolution: TV & CATV 25 KHz; SAT: 5 MHz
Power range Meas.: TV 35 to 115 dBμV, SAT 5 to 105 dBμV
Digital Meas: Digital Power, MER (36 to 40 dB max depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
Measurement Resolution: 0.1 dB
Level Measurement Accuracy: 1 dB typ. (2 dB max.)
Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 5 MHz @ -3 dB
Constellation: for TV/CATV and SAT signals
Spectrum: Fast spectrum, Max Hold and spectrum memorization with real time compare function
Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position
Echoes, Pre-echoes, Micro-echoes: Representation in real Time
Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL
Digital Pictures: MPEG2-4 SD & HD, HEVC (opt.) pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen

OPTICAL MEASUREMENTS

SC input connector
Automatic loss calculation
Wavelengths (nm): 1310, 1490 & 1550
Range: -25 to +6 dBm
Resolution: 0.1 dB
Accuracy: +/- 0.5 dB
Optical to RF conversion

COMM. PORTS AND OUTPUTS

RF Input : 75 ohm (interchangeable “F”)
USB 2.0: Type B (PC Interface)
Audio: AAC supplied, DOLBY (opt.)
Video: Composite Video input

GENERAL SPECIFICATIONS

5” TFT TOUCH display: 16:9 high resolution and high brightness
Power Supply: Built in LiPo battery with 2 to 4 hours duration (depending on the function) & Battery Test function
DC voltage at RF input: 5 – 12 – 18 – 24 VDC, DiSEqC, SCR & dCSS commands
PC Interface: USB-B
Front-Panel: Alpha numeric keypad
Power Save: TFT backlight timer, brightness adj
PC Management: S.M.A.R.T. software
Weight: only 1,4 Kg with batteries
Size: H 13,0 x W 25,5 x D 4 cm
Housing: Aluminium and Steel and padded bag
