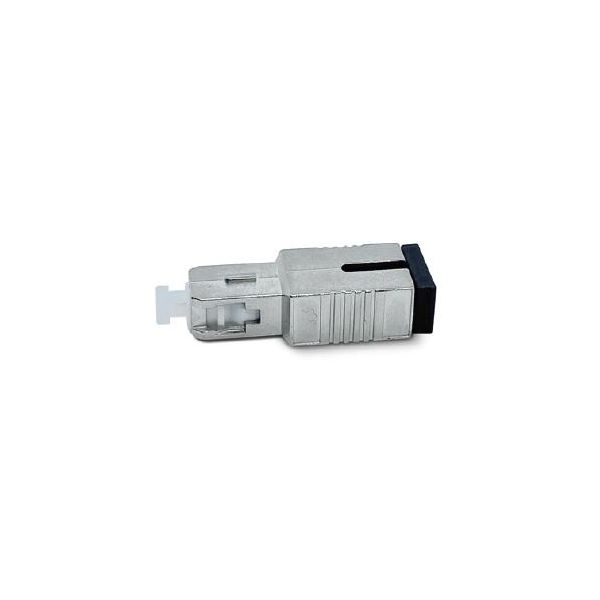

SC/APC Optical Attenuator Singlemode 5dB

SKU
OFPATSCASM05
Brands: OFP
Availability: In stock
24/48 Hours
€8.17 Tax included
OFP

OFP 5dB Single Mode Optical Attenuator

This attenuator is used in fiber optic installations when we want to prevent detector saturation, we want to protect optical instruments or when we want to reduce or balance power.

It is prepared for single-mode fibers and has an attenuation of 5dB. It is made of doped fiber. The attenuator improves performance, keeping it stable, even in harsh environmental conditions.

This dimmer is APC-polished, highly durable, and very stable.

OFP 5dB Singlemode Optical Attenuator Technical Specifications

Optical Characteristics:

Wavelength

1310nm y 1550nm - 850nm y 130Dnm

Polarization Dependent Loss (PDL)

< 0.1dB

Resistance power

More than 100h in 100mW light power

Typical dimming tolerance

1*9dB - +-0.5dB

10 * 25dB -  +-1dB

Typical Return Loss (db) – Single Mode Fiber:

UPC

APC

>=50 >=60

Environmental Specifications:



Min.

Typical

Max.

Working temperature (°C)

-40

+25

+70

Storage temperature (°C)

-5

+25

+50

Materials:

Parts

Material

Metal parts

Zinc Nickel Mix

Cap

zirconia

Splint

zirconia





More Information
ColorSilver
Product BrandOFP
FO DistributionFO Attenuator
EntornoInterior
Write Your Own Review
You're reviewing:SC/APC Optical Attenuator Singlemode 5dB
Your Rating
File Label Size Download
pdf Ficha Técnica Atenuador Óptico SC/APC Monomodo 394.8 KB Download
