Single Channel Amplifier DTT for selective T12

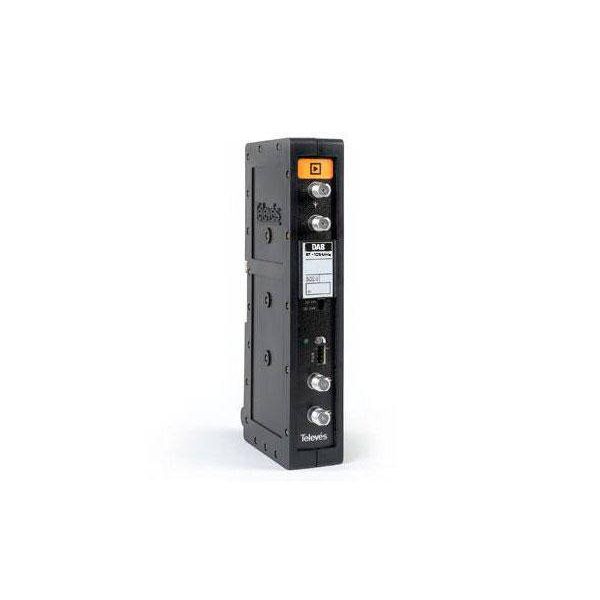

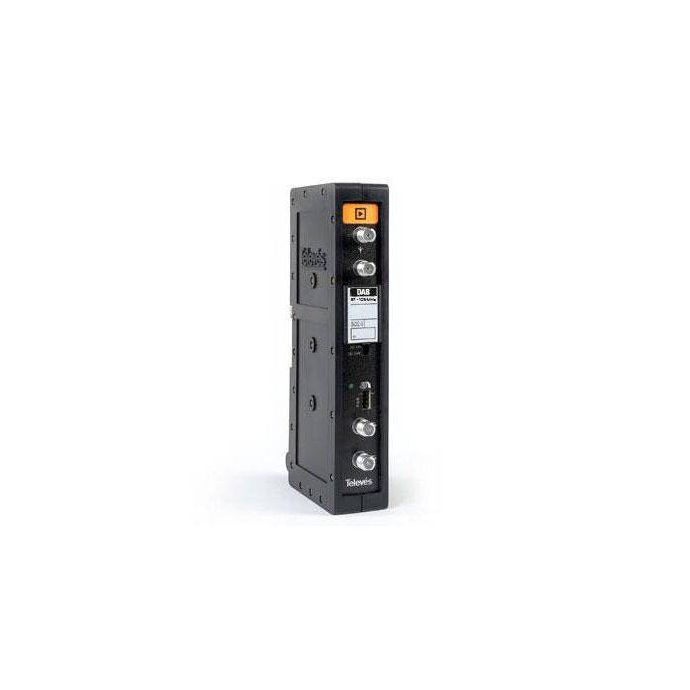

Single channel DTT amplifier for selective T12.Ref. 509812 of Televes.
Single channel amplifier for DTT frequency amplification. This amplifier is used together with the rest of the single-channel amplifiers that form a headend. The rail is necessary for its operation (it can be installed on a DIN rail, chest or rack) and the power supply. It has a very high adjustable gain.
With the T.12 single-channel amplifiers, Televés has achieved a product that provides unbeatable performance in signal processing, with precise and simple frequency adjustments. The T.12 modules are manufactured on state-of-the-art robotic lines and are subjected to the strictest quality controls, a guarantee of unprecedented reliability and stability. Prepared to adapt to the incipient relocation of the digital dividend, this product bears the Televes LTE Ready seal.
You must tell us, in the comments field that you will find during the purchase process, the channel number you need.
Technical Specifications of the Single Channel TDT Amplifier for selective T12.Ref. 509812 of Televes.
Features:
- Total compatibility with the previous model T.03 as well as its power source
- High reliability. ., thanks to its fully robotized manufacturing
- Considerable improvement in the design of . Shielding
- System ... modular and extensible
- Power up to 24 modules, through its Power Supply
- Remote Power previous
Frequency margin | MHz | 470...890 | ||
Bandwidth | MHz | CCIR | 8 | |
NTSC | 6 | |||
Gain | dB | 50 | ||
Gain regulation | 30 | |||
AGC dynamic margin | - | |||
Equalizer | - | |||
Max.output level | dBμV | A EN 50083-5 | 125 | |
D EN 50083-5 | 118 | |||
dBmV | A EN 50083-5 | 65 | ||
D EN 50083-5 | 58 | |||
Max. current input | mA | 100 | ||
Power supply | Vdc | 24 | ||
Current consumption | mA | 95 | ||
Flatness | dB | <2 | ||
Rejection | CCIR | dB | Rn±1 | >18 |
Rn±2 | >50 | |||
Rn±3 | - | |||
NTSC | Rn±1 | 10 | ||
Rn±2 | >40 | |||
Rn±3 | - | |||
Protection Level | IP | 20 |
EAN | 8424450239605 |
---|---|
System | DTT |
SERIE | T12 |
LTE compatible | No |
Current bypass | Terrestrial |
Product Brand | Televes |
Icon | Label | Size | Download |
---|---|---|---|
|
Ficha Técnica Amplificador Monocanal TDT para T12 selectivo | 292.9 KB | Download |
