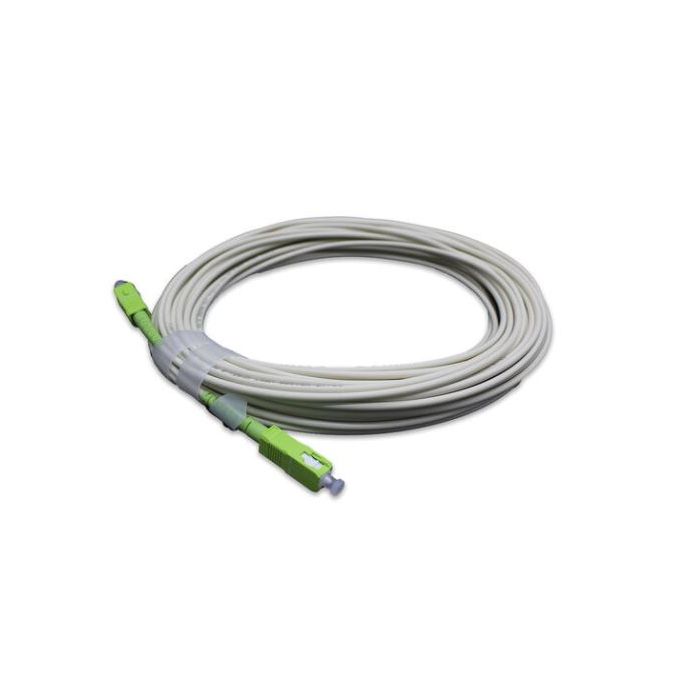

Single-mode 3mm Simplex SC/APC LSZH Fiber Optic Patch Cord G657A2 35m Protection with Pull Handle

SKU
LATFO35M
Brands: Bitel Group
€22.37
Tax included
Availability: On request
1 to 7 days

Singlemode Fiber Optic Patch Cord 3 mm Simplex SC/APC G657A2 35 m – BITEL

This 35m single-mode fiber optic patch cord , manufactured by BITEL, is equipped with SC/APC connectors at both ends and uses fiber G657A2 , recognized for its high flexibility and low sensitivity to curvature. Your design 3mm simplex LSZH makes it an ideal solution for professional installations where a stable, low-attenuation connection is required.

Thanks to the combination of connectors Precision SC/APC and fiber G657A2 , this patch cord offers optimal performance in FTTH networks, links between optical equipment, technical rooms or telecommunications deployments. G657A2 fiber guarantees a small bend radius, making it easier for the installer to use in narrow conduits or complex installations without compromising signal quality.

This model becomes an excellent option when you need a Reliable, robust hose with APC connectors , especially in projects where low return loss is essential. In addition, by having an LSZH cover, it meets fire safety requirements in residential, business or industrial environments. Very flexible and robust, comes in color beige, also includes a handle to facilitate installation.

In summary, the 35 m SC/APC hose It is perfect for installers looking for a professional quality optical cord for single-mode links, guaranteeing performance, durability and ease of installation.

Reference: LATFO35M

-
+

Expanded Information on the Singlemode Fiber Optic Patch Cord 3 mm Simplex SC/APC G657A2 35 m – BITEL

Practical uses – SC/APC Singlemode Fiber Optic Patch Cord G657A2 35 m – BITEL

Case study 1 – FTTH link between CTO and ONT in home or business installations

In fiber to the home or business installations, this patch cord allows direct links between optical terminal boxes (CTO) and ONT/optical routers using connectors. SC/APC , the most common in FTTH. The fiber G657A2 It provides excellent performance in sharp curves, allowing the installer to adapt to small spaces without the risk of excessive losses.

Practical case 2 – Professional connection between optical equipment in racks or technical rooms

In technical environments where a link of up to 35 meters between optical splitters, OLT, splitters or GPON equipment, this patch cord provides stable performance thanks to its low typical attenuation. Your cover LSZH of 3 mm It offers mechanical resistance and safety against fire, being suitable for CPDs, telecommunications booths and single-mode networks in corporate infrastructures.

Technical Characteristics of SC/APC Singlemode Fiber Optic Patch Cord G657A2 35 m – BITEL

Parameter Standard specification
Fiber type Lightning 9/125 µm – G657A2
Connectors SC/APC – SC/APC (green)
Configuration Simplex (one fiber)
Deck LSZH – 3 mm
Dimming (typical) ≤ 0.3 dB per connector
Return Loss ≥ 60 dB (APC)
Radius of curvature Reduced (G657A2 compatible)
Length 35 meters
Cover color Beige (single-mode standard)
Polishing type APC (Angle Polishing)
Recommended use FTTH, optical links, racks, OLT/ONT, GPON equipment
Fire resistance LSZH (low smoke/halogen free)
Working temperature -20 °C a 70 °C
More Information
Hight 0.200
Length 0.030
Width 0.200
CTI - System Monomode
CTI - Serie 35m
Fiber type Singlemode
Entorno Interior
Color Beige
Usar stock disponible No
Product Brand Bitel Group
