Tap DTT-SAT 1 Output F 20dB Tecatel

SKU

TECDERCLA1S20

Brands: Tecatel

Availability: In stock

Delivery: 24/48 Hours

€3.13 Tax included

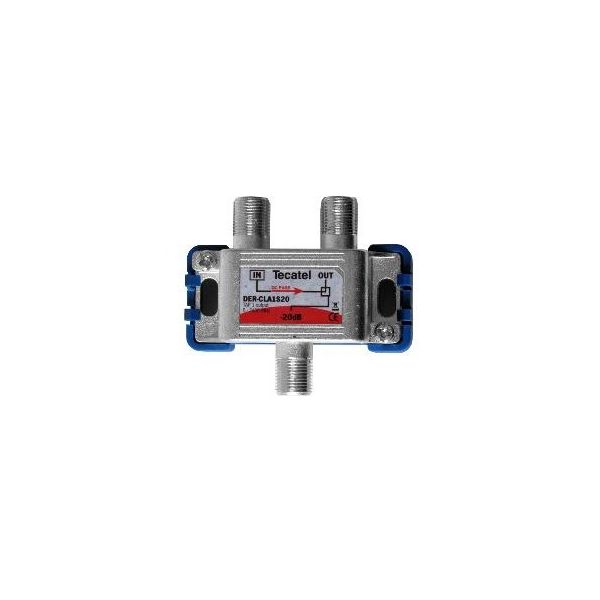

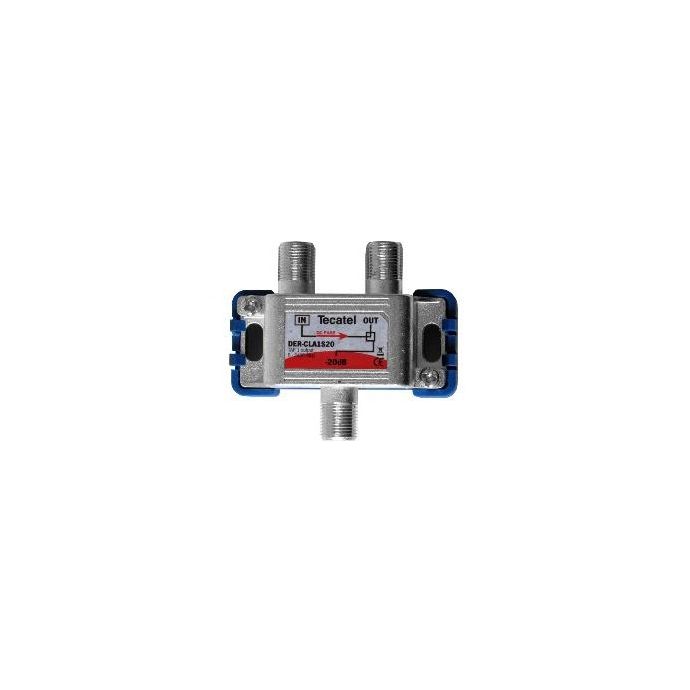

DTT-SAT Tap of 1 Output F 20dB Tecatel DER-CLA1S20

Terrestrial and SAT (5-2400 MHz) tap of 1 output and 20dB losses with F connectors. High quality Zamak shield and corrosion resistant nickel finish.

Passive distribution equipment for community facilities of ICT regulations. This tap allows us to distribute the TV signal to 1 dwelling per floor of the building and has a pass-through output with 1.2dB of losses to connect to the diverter on the lower floor.

Details

DTT-SAT 1-output type F tap with 20dB attenuation, for ICT collective installations

What technical specifications does the Tecatel DER-CLA1S20 Tap have?

Reference: DER-CLA1S20
Shunt losses:

5-1000 MHz: 20 ± 1 dB
1000-2400 MHz: 20 ± 1.5 dB

Insertion losses:

5-47 MHz: 1.1 dB
47-1000 MHz: 1.2 dB
1000-1750 MHz: 1.4 dB
1750-2300 MHz: 1.4 dB
2300-2400 MHz: 1.6 dB

Pass-by-pass isolation:> 20 dB
Dimensions: 57x49x26 mm
Weight: 40 gr.
Frequency range: 5-2400 MHz
Impedance: 75Ω
Connectors: F

More Information

More Information
EAN	8430549028999
System	DTT & SAT
SERIE	F-connector
Color	Gray
TV-SAT Distribution Equipment	Diverter
Entorno	Interior
TV-SAT Distribution Connection	F
Outputs	1
Insertion Loss (dB)	20
Product Brand	Tecatel
