UAP Splitter 8 Outputs Flange 14.5dB Ikusi

SKU
IKU2107
Brands: Ikusi
Availability: In stock
24/48 Hours
€14.45 Tax included
Ikusi

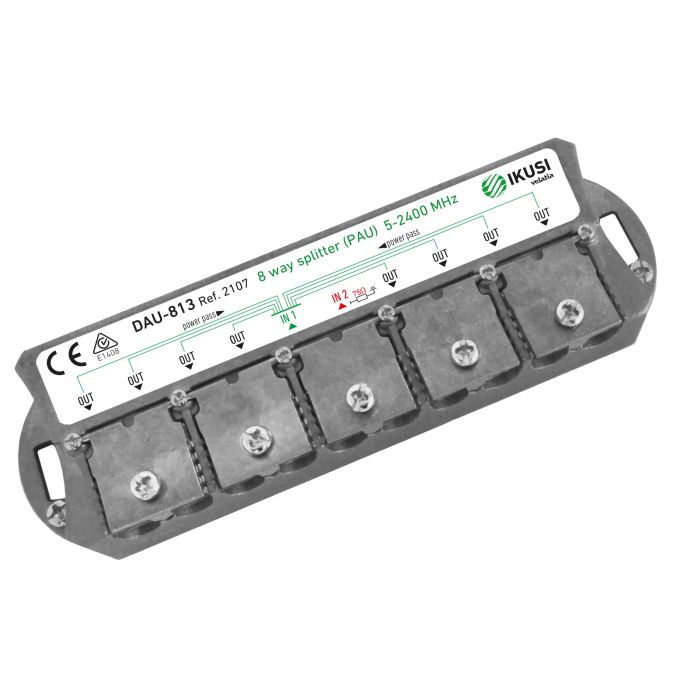

UAP Splitter 8 Outputs Flange 14.5dB Ikusi 2107

Distributor + UAP with 2 inputs and 8 outputs for DTT-SAT (5-2400 MHz) signal distribution. With flange type quick connection, more comfortable and without the need for connectors.

User Access Points or UAPs are used in collective TV installations according to ICT regulations. It performs the same function as a splitter, but has an additional input loaded to connect the second coaxial cable drop.

Manufactured in a high shield Zamak box, with provision for grounding, for indoor installation.

Technical Specifications of the Ikusi 2107 PAU 8 Outlet PAU Distributor

  • Model: DAU-813
  • Reference: 2107
  • Number of outputs: 8
  • Frequency range: 5-2400 MHz
  • Distribution attenuation:
    • 5-862 MHz: 12.5 dB
    • 950-1550 MHz: 13.8 dB
    • 1551-2150 MHz: 15.4 dB
    • 2150-2400 MHz: 17 dB
  • Decoupling between outputs:
    • 5-300 MHz: 28 dB
    • 301-862 MHz: 28 dB
    • 950-2400 MHz: 24 dB
More Information
EAN8435136421078
SystemDTT & SAT
SERIEBrida Connector
ColorGray
TV-SAT Distribution EquipmentUAP
EntornoInterior
TV-SAT Distribution ConnectionFlange
Outputs8
Insertion Loss (dB)14
Product BrandIkusi
Write Your Own Review
You're reviewing:UAP Splitter 8 Outputs Flange 14.5dB Ikusi
Your Rating
File Label Size Download
pdf IKU2107 Ficha Técnica 1.1 MB Download
