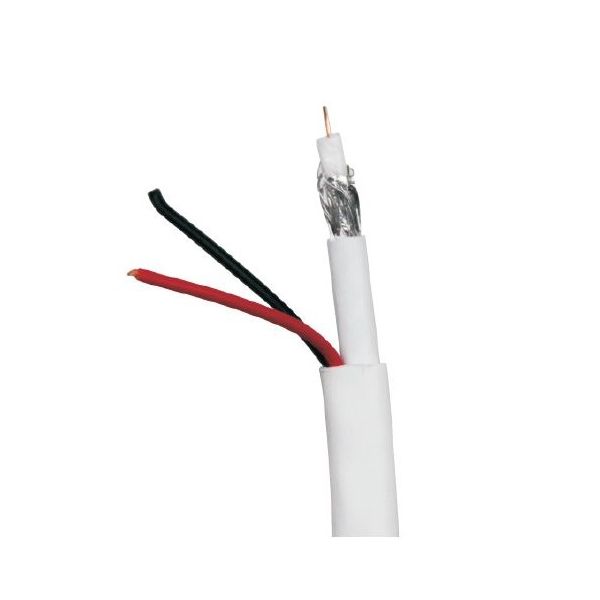

White CCTV coaxial cable and power coil 100m

White coaxial cable for CCTV circuit further includes power supply wires, so no need to extend another separate cable to provide power to the system. This system helps to save space, we do not need to perform the laying of two cables, if not one.

What features does this coaxial cable?

Central copper pipe 0.61 mm ± 0.01 mm with an elongation at break of 25%.
Polyethylene Dielectric 3.3 mm ± 0.05 mm.
First aluminum shielding attached to the dielectric.
Second aluminum shielding 4.2 mm ± 0.15.
Power cable 0.75 mm2 copper.
Coaxial cable layer of 5.20 mm PVC ± 0.10, with a thickness of 0.50 mm and an elongation of 180%.
outer layer of the coaxial cable PVC 8,60 ± 0,20 mm, with a thickness of 0.75 mm and an elongation of 180%.
Working temperature of -10 ° C to 70 ° C.

What other specifications presented ED0350 coaxial cable of Daxis?

Coaxial cable attenuation and white CCTV feed is as follows:

With an impedance of 75 Ohms ± 3.

In addition to providing a return loss of 20 dB at frequencies 5MHz - 1000 MHz and 16 dB at the frequency of 1000 MHz - 2150 MHz.
