Comelit KNX 22-Output 16A Actuator with Manual Control

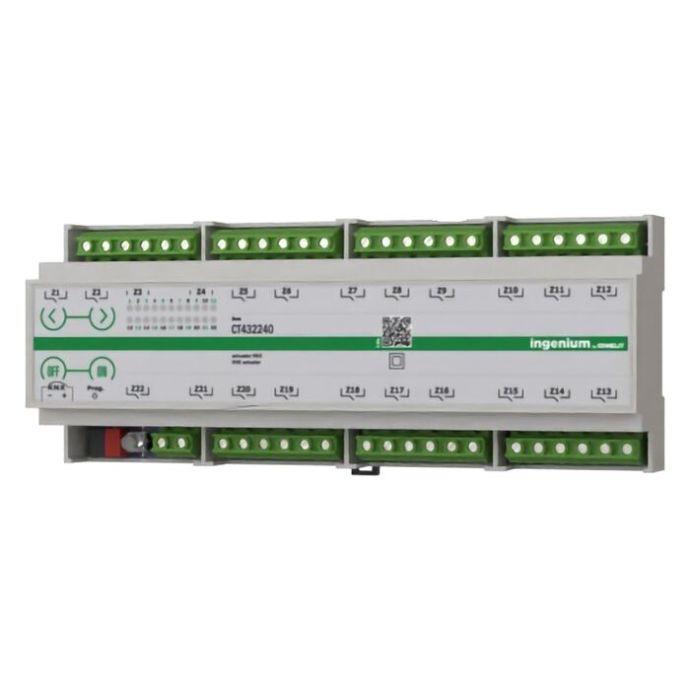

Comelit CT432240 KNX 22-Output 16A Actuator with Manual Control
The Comelit KNX 22-Output 16A Actuator with Manual Control centralises multiple electrical circuits in a single DIN-rail device. Its 22 potential-free relay outputs can control lighting, power sockets, blinds and HVAC equipment in smart homes and buildings.
Each output supports up to 16 A at 230 VAC and can be configured independently or coordinated through ETS. The integrator can use it to control up to 22 on/off circuits, 11 blinds or 5 fan coil units, as well as thermal valves. The communication line can be installed using this four-core KNX bus cable.
Four capacitive buttons and 22 status LEDs allow manual operation, simplifying commissioning, circuit testing and maintenance directly from the electrical cabinet. It is intended for new KNX installations and system extensions. When used as a replacement, the existing ETS project, group addresses and wiring must be checked. The actuator occupies 12 DIN modules, and loads exceeding 16 A require an external contactor.
Its high output density is particularly useful for system integrators who need to reduce the number of separate actuators while retaining flexible control of each channel. The installation can be completed with a KNX touchscreen with IP connectivity to centralise lighting, blinds, HVAC, scenes and alarm management.
Reference: COMCT432240
