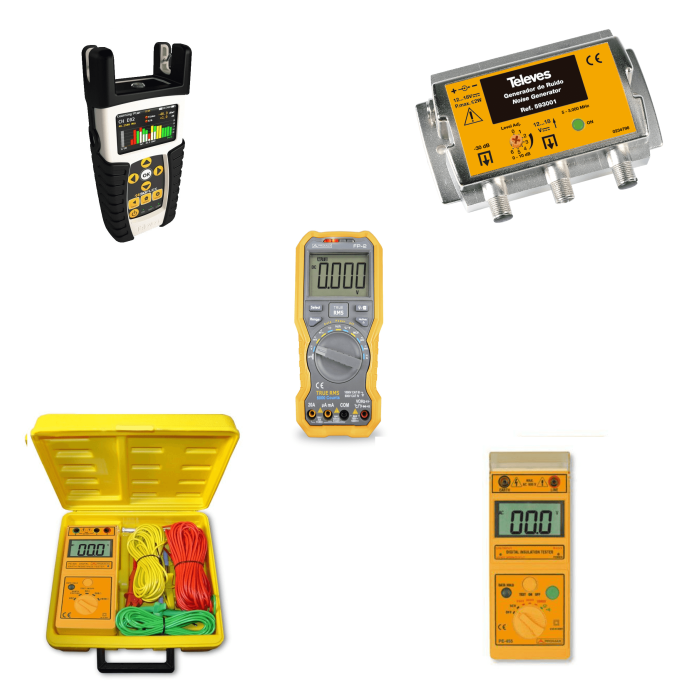

Complete TDT professional kit for authorized type A telecommunications installer.
What technical specifications do the equipment that make up the Installer A kit have?
Televes H30FLEX 593301 Field Meter
| Screen |
2.8” TFT 400 x 240 full color |
| Weight |
510 g. |
| Dimensions |
175x100x52 mm / 6,9x3,9x2 (HxWxD) |
| AC Adaptor |
Input: 100-240V~ 50-60Hz Output: 12VDC, 2A |
| Battery |
Li-ion (7,2VDC, 2300mAh) |
| Baterry range |
>4hours without LNB powering |
| Interfaces |
USB 2.0 for Data log download and software upgrades |
| Storage capacity |
400 MB (internal) for measurements |
| Resilience |
It withstands drops from 1 m (3.2 ft) onto concrete on all sides |
| Impedance |
F-type connector - 75 Ohm |
Televes 593001 frequency simulator
| References |
593001 |
| Frequency range |
MHz |
5...3000 |
| Max output level |
dBµV |
80 ±3 (3 MHz) |
| Output level regulation |
dB |
0...10 |
| Power (via coaxial cable or AC adapter) |
Vdc |
12...18 |
| Consumption |
W |
2 |
| Dimensions |
mm |
98 x 65 x 27 |
Promax PE-455 Insulation Meter
-INSULATION RESISTANCE : SCALES ; Auto range Ω 20 M / 200 M Ω / 2000 Ω M 20 M & # 937 ; 200M & # 937 ; 2000 M Ω
- STRESS N AC: 0-600 V , 40-120 Hz
- RESISTANCE SCALES . 20 M & # 937 ; 200M & # 937 ; 2000 M Ω
- ACCESSORIES : Game test leads, safety clips , fuse 0.5 A 250 V , instruction manual , carrying case
Promax PE-335 Grounding Meter
- MEASUREMENT SYSTEM: Injection constant current 820 Hz, 2 mA
- STRESS & competitively priced EARTH: 0 ~ 199.9 V AC, 50/60 Hz
- M X. INPUT VOLTAGE: 200 V RMS
- SCALE AND RESOLUTION N:
- 0 ~ 19.99 Ω (0.01 Ω)
- 0 ~ 199.9 Ω (0.1 Ω)
- 0 ~ 1999 Ω (1 Ω)
- ACCESSORIES: Set of test leads, 2 auxiliary earth spikes, instruction manual, carrying case
Promax FP-2 Multimeter
- VOLTAGE 600 mV to 750 V (AC), and 60 mV to 1000 V (CC) TRMS
- CURRENT 600 μA to 20 A (AC / DC)
- FREQUENCY 10 Hz to 10 MHz
- TEMPERATURE -50ºC to 400ºC
- OTHER FUNCTIONS AND CHARACTERISTICS
- Resistance
- Capacity
- Diodes
- Continuity
- Frequency test
- Duty Cycle
- Temperature probe
- Non-contact voltage detection
- Data retention
- LED work flashlight
- Anti-shock protector
- Folding support
- PRESENTATION Presentation: Backlit 4-digit graphic LCD with 58.5 x 51 mm
