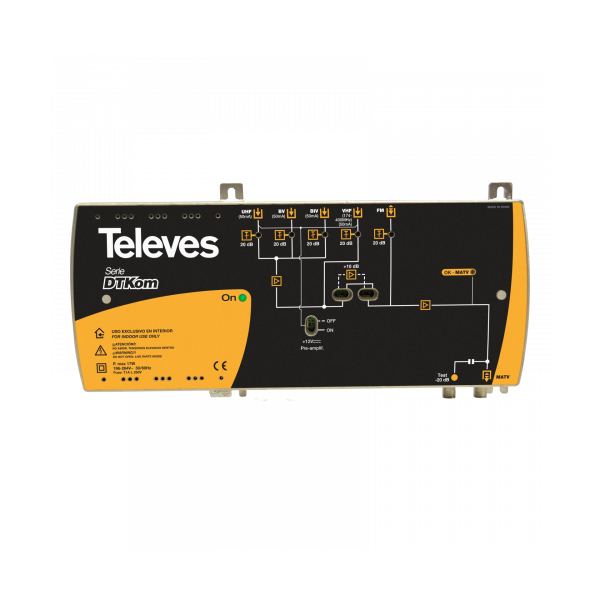

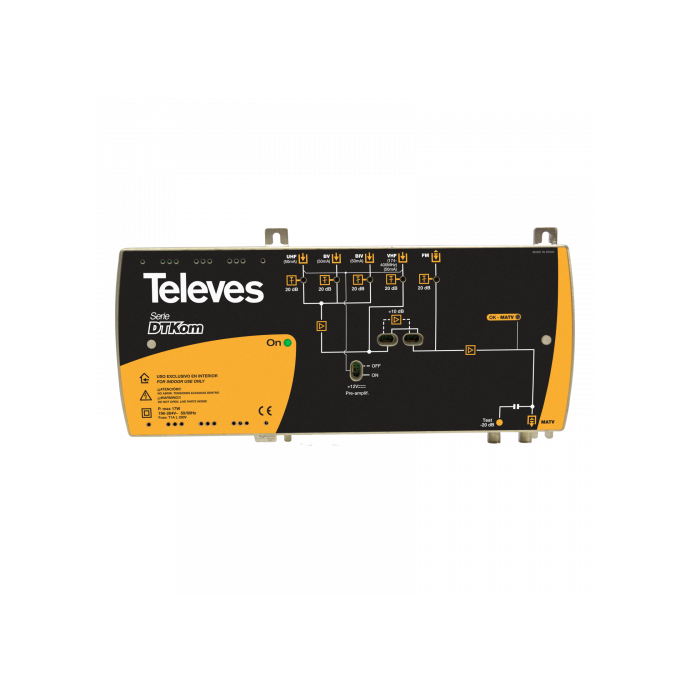

Central Amplifier DTKOM MATV 5e/1s U-BV-BIV-V-FM

SKU

TEL4509

Brands: Televes

Availability: On request

Delivery: 1 to 7 days

€360.96 Tax included

Central Amplifier DTKOM UHF/BV/BIV/VHF/FM 5e/1s Televés

Central DTKOM that provides a separate amplification to minimize intermodulation between bands, leading to better power levels at the output. Features 5 inputs (FM-BIV-BV-UHF-VHF)

The gain of this amplifier can be configured using a switch.

It incorporates Power Doubling technology, guaranteeing levels of 129 dBμV in terrestrial.

It integrates a high performance and low consumption switch mode power supply.

Its casing is made of Zamak, a material that facilitates its cooling and is highly shielded. It also incorporates a led that indicates the output signal.

Details

Technical specifications of the Televés 4509 amplifier unit

Bands			UHF	BV	BIV	VHF	FM
Frequency range		Mhz	470 ... 862	614 ... 862	470 ... 590	174 ... 400	88 ... 110
Gain	0	dB	52	50	50	45	30
	10		40	38	38	32	-
Gain level			(Manual) 0 ... 20	(Manual) 0 ... 20	(Manual) 0 ... 20	(Manual) 0 ... 20	(Manual) 0 ... 20
Output level	IMD3 (2 tones,-35 dB)	dBμV	132 (72)
	DIN 45004B		129 (69)
	IMD3 (2 tones,-60 dB)		126 (66)
	IMD2 (2 tones,-60 dB)		120 (60)
	CTB, CSO, XMOD (35 tones, -60 dB)		113 (53)
Noise figure		dB	10	11	11	7	12
Test			-20
Power inputs		V	12	12	12	12	-
Current max. input		mA	50	50	50	50	-
Mains voltage/frequency		V~	99 ··· 264 / 50-60 Hz
Total AC consumption	OFF	W / mA	7 / 115 @ 99 V~ 7 / 75 @196 V~
	ON	W / mA	10 / 165 @ 99 V~ 10 / 105 @196 V~
Protection index		IP	20
Operating temperature range		ºC (ºF)	-5 ··· +45 (23 ... 113)

More Information

More Information
EAN	8424450144770
System	DTT
SERIE	DTKOM
Color	Silver
Type	Broadband station
Input signal	FM, UHF, VHF
# Inputs	5
Outputs	1
Gain	53
LTE compatible	No
Current bypass	Terrestrial
Product Brand	Televes
