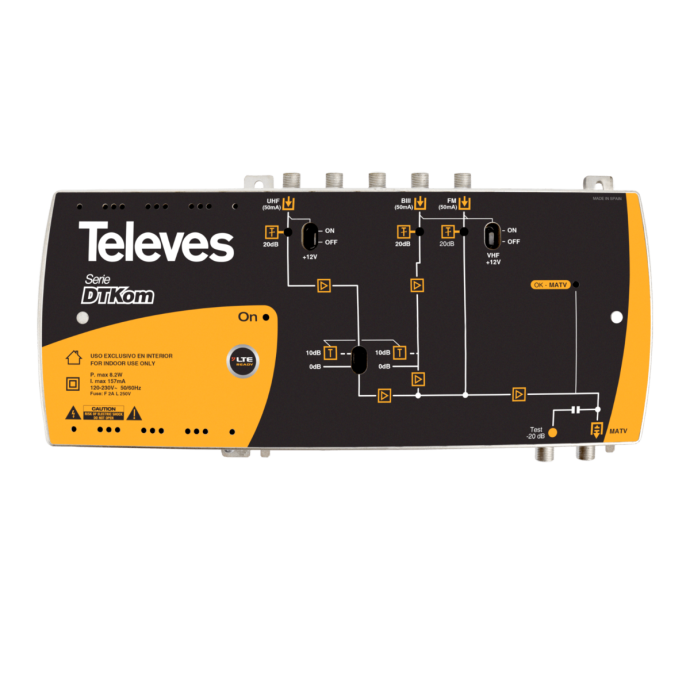

Multiband Amplifier DTKOM FM-BIII-UHF LTE 5G Televes

SKU

TEL534020

Brands: Televes

Availability: On request

Delivery: 1 to 7 days

€254.09 Tax included

Multiband Amplifier DTKOM FM-BIII-UHF LTE 5G Televes 534020

DTKOM terrestrial amplifier with 3 inputs (FM-BIII-UHF) and integrated 5G LTE filter. High power amplifier with configurable gain via switch (high/low) and high output level of 123dBμV in terrestrial. Central designed to provide a solution to small collective terrestrial TV installations.

Intuitive front panel with settings and block diagram, output signal indicator LED. It incorporates a switch for DC pass to preamplifiers or BOSS antennas. Highly shielded chassis, made of Zamak, which facilitates cooling. It integrates high performance and low consumption switching power supply.

Details

DTKOM FM-BIII-UHF 42dB Broadband Multiband Amplifier with 5G LTE

What technical specifications does the DTKOM Televes 534020 Amplifier have?

Bands			UHF	BIII	FM
Frequency margin		Mhz	470 ... 694	174 ... 370	88 ... 108
Gain	0	dB	42	42	25
	10		32	32	25
Gain margin			(Manual) 0 ... 20	(Manual) 0 ... 20	(Manual) 0 ... 20
Max. output level	IMD3 (2 tones,-35 dB)	dBμV (dBmV)	125 (65)
	DIN 45004B		123 (63)
	IMD3 (2 tones,-60 dB)		120 (60)
	IMD2 (2 tones,-60 dB)		-	122 (62)	-
Noise figure		dB	5	5	6
Test			-20
Powering inputs		V=	12
Max. current inputs		mA	50
Mains voltage / frequency		V~ / Hz	120 ... 230 / 50-60
Total AC consumption	OFF	W / mA	5,8 / 120
	ON	W / mA	8,2 / 157
Protection level		IP	20
Operating temperature range		ºC (ºF)	-5 ... +45 (23 ... 113)

More Information

More Information
EAN	8424450214541
System	DTT
SERIE	DTKOM
Color	Black
Type	Broadband station
Entorno	Interior
Input signal	DAB, FM, UHF, VHF
# Inputs	3
Outputs	1
Gain	42
Max. output level Ganancia (dB/uV)	123
LTE compatible	Yes
Current bypass	Terrestrial
Product Brand	Televes
