Data Cable STP CAT6A Dca Cu LSFH Violet Coil of 500m from Televes

SKU

TEL219322B

Brands: Televes

Availability: On request

Delivery: 1 to 7 days

€476.44 Tax included

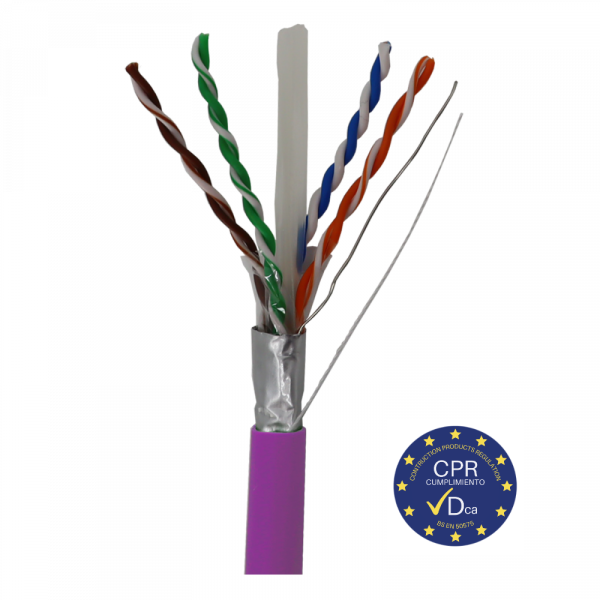

Category 6A Dca LSFH STP Data Cable in coil 500m 219322 from Televes

Data cable with 4 pairs of copper wires, shielded with unshielded pairs. The cable has a category 6A and euroclass Dca.

The cable achieves a bandwidth of up to 650Mhz with an impedance of 100 ohms. Its maximum resistance per conductor is less than 9.38 ohms/100m.

This type of cable is used for network installations, being the evolution of category 6 and being compatible with lower categories.

The cable is presented in a 500-meter coil and in Violet color.

Details

Technical Specifications of the STP Data Cable of Category 6A Dca LSFH in coil 500m 219322 from Televes

Type

F/UTP

Euroclass

Dca

Euroclass: Smoke Production

Euroclass: Flaming droplets

Euroclass: Acidity

Categorie

Cat 6A

Transmission bandwidth

500MHz

Transfer rate

10Gbps

Conductor Diameter

0.55

Conductor Material

Solid copper

Conductor type AWG

Conductor isolation Diameter

1.14

Conductor isolation Material

Polyethylene

Crucifix filler

Yes

Shielding foil of pairs

Aluminium + Polyester

Drain wire Diameter

0.4

Drain wire Material

Tinned copper (CuSn)

Outer sheath Diameter

7.3

Outer sheath Material

LSFH

Outer sheath Thickness

0.5

Rip cord

Yes

Spark Test

Vac

3000

Nominal impedance

100

Conductor resistance

Ω/100m

< 9.38

Nominal speed

Operating temperature

°C

-25 ... 70

Frequencies

1 MHz

4 MHz

8 MHz

10 MHz

16 MHz

20 MHz

25 MHz

31.25 MHz

62.5 MHz

100 MHz

200 MHz

250 MHz

300 MHz

400 MHz

500 MHz

600 MHz

650 MHz

Attenuation (max.)

dB/100m

2.1

3.8

5.3

5.9

7.5

8.4

9.4

10.5

19.1

27.6

31.1

34.3

40.1

45.3

52.3

Attenuation (typ.)

dB/100m

2.1

3.8

5.3

5.9

7.5

8.4

9.4

10.5

19.1

27.6

31.1

34.3

40.1

45.3

52.3

ACR-N (typ.)

dB/100m

72.2

61.5

55.5

53.4

48.7

46.4

43.9

41.4

32.4

25.2

12.2

7.2

2.8

-4.8

-11.5

-17.4

-20.2

PS ACR-N (typ.)

dB/100m

70.2

59.5

53.5

51.4

46.7

44.4

41.9

39.4

30.4

23.2

10.2

5.2

0.8

-6.8

-13.5

-19.4

-22.2

Return losses

24.5

24.3

23.6

21.5

20.1

17.3

16.8

15.9

15.2

14.6

14.4

More Information

More Information
EAN	8424450251430
System	CAT6A
Serie	500m
Color	Purple
Cobertura Exterior Cables	LSFH
Conductor Interno Cables	Copper (Cu)
Product Brand	Televes

Reviews

Write Your Own Review

You're reviewing:Data Cable STP CAT6A Dca Cu LSFH Violet Coil of 500m from Televes

Your Rating

Score

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Product Attachment

File	Label	Size	Download
	Ficha Técnica de Cable de datos STP CAT6A Dca Cu LSFH Violeta Bobina 500m de Televes	1.5 MB	Download
