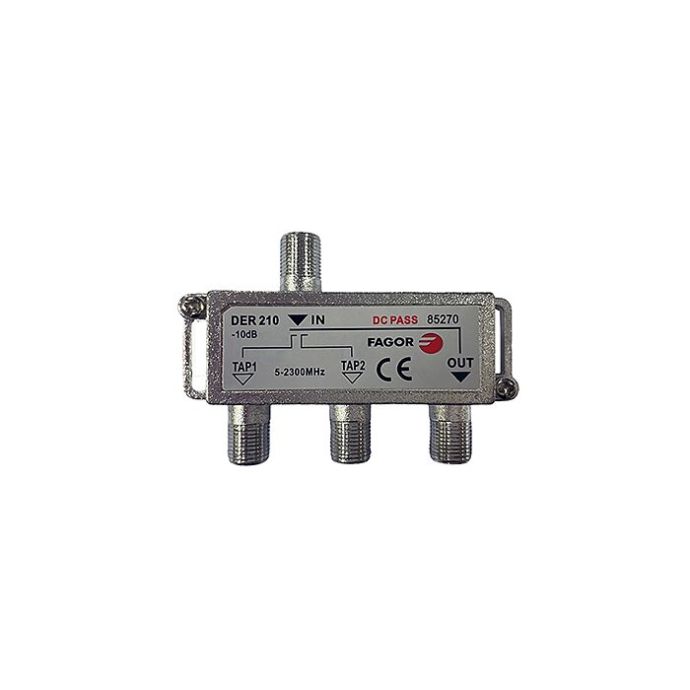

main product photo

Fagor 2-Output FI SAT Tap-Off with F Connectors 10dB

SKU
FAG85270
Brands: Fagor
€4.94
Tax included
% Discount for professionals
Fagor
Availability: On request
1 to 7 days

Fagor DER 210 2-Output 1st IF SAT Tap-Off

The Fagor 2-Output FI SAT Tap-Off with F Connectors 10dB is a professional passive component for TV signal distribution in communal installations. It extracts a controlled portion of the signal from a main trunk line to feed two apartments or individual outlets, while allowing the main signal path to continue through the building.

This Fagor DER 210 tap-off operates across the 5 to 2300 MHz frequency range, making it suitable for terrestrial TV, radio and satellite 1st IF SAT signals. It is designed for new ICT installations, network extensions and maintenance work where installers need stable signal distribution with controlled tap loss. It can be combined with other signal tap-offs in professional TDT-SAT networks.

The signal enters through one end and exits through the other with low through loss, approximately 3 dB in the terrestrial band and up to 4 dB in satellite frequencies. It also provides DC pass through all outputs, supporting remote powering of external elements or LNB polarity control through compatible DiSEqC signals.

Its shielded zamak housing and threaded F connectors help maintain a reliable installation with protection against external interference. This tap-off is a practical choice for distribution networks that require two derived outputs, robust shielding and continuity along the trunk line using standard F connectors.

Reference: FAG85270

-
+

Extended information about Fagor 2-Output FI SAT Tap-Off with F Connectors 10dB

Practical applications of Fagor 2-Output FI SAT Tap-Off with F Connectors 10dB

Example 1: signal tap-off on a floor with a TDT-SAT trunk line.

An installer can use the Fagor DER 210 in an ICT installation where the main television line runs through the building and needs to feed two apartments on the same floor. The tap-off extracts a controlled portion of the signal for those two outputs, while the through output keeps the trunk line active towards the lower floors with reduced insertion loss.

Example 2: replacement of a damaged tap-off in a communal TV network.

During maintenance work, this 2-output tap-off is suitable for replacing an older passive device with F connectors in a TDT and satellite distribution network. Its 5-2300 MHz frequency range helps preserve terrestrial and satellite distribution, while DC pass through the outputs supports remote powering or LNB control when required by the installation.

Package contents of the Fagor 2-Output FI SAT Tap-Off with F Connectors 10dB

  • 1 Fagor DER 210 2-output tap-off with F connectors.
  • No additional accessories are specified in the available technical documentation.

Technical specifications Fagor 2-Output FI SAT Tap-Off with F Connectors 10dB

Feature Specification
Brand Fagor
Manufacturer model DER 210
TDTprofesional SKU FAG85270
Manufacturer reference 85270
Product type Passive TV-SAT tap-off
Recommended use ICT installations, communal TDT and SAT networks
Number of tap outputs 2
Connection Threaded F connector
Frequency range 5-2300 MHz
Tap loss 10 dB
Through loss 5-47 MHz 3.5 dB
Through loss 47-862 MHz 3 dB
Through loss 950-2150 MHz 3.5 dB
Through loss 2150-2300 MHz 4 dB
Directional attenuation 5-47 MHz 20 dB
Directional attenuation 47-862 MHz 23 dB
Directional attenuation 950-2150 MHz 18 dB
Directional attenuation 2150-2300 MHz 18 dB
Output isolation 5-47 MHz 40 dB
Output isolation 47-862 MHz 30 dB
Output isolation 950-2300 MHz 28 dB
Return loss 5-862 MHz 12 dB
Return loss 950-2150 MHz 10 dB
Minimum shielding factor 5-862 MHz 65 dB
Minimum shielding factor 950-2150 MHz 55 dB
DC pass Yes, through all outputs in the DER series
Compatibility TDT, radio and 1st FI SAT satellite signals
Installation Indoor, coaxial distribution network
Housing Shielded, high-strength zamak-type body
Package dimensions, 10 units 160 x 105 x 57 mm
Package weight, 10 units 0.60 kg
More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT & SAT Distribution
SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment Diverter
Entorno Interior
TV-SAT Distribution Connection F
Outputs 2
Input signal DAB, FI, FM, UHF, VHF
Insertion Loss (dB) 10
Usar stock disponible No
Product Brand Fagor
