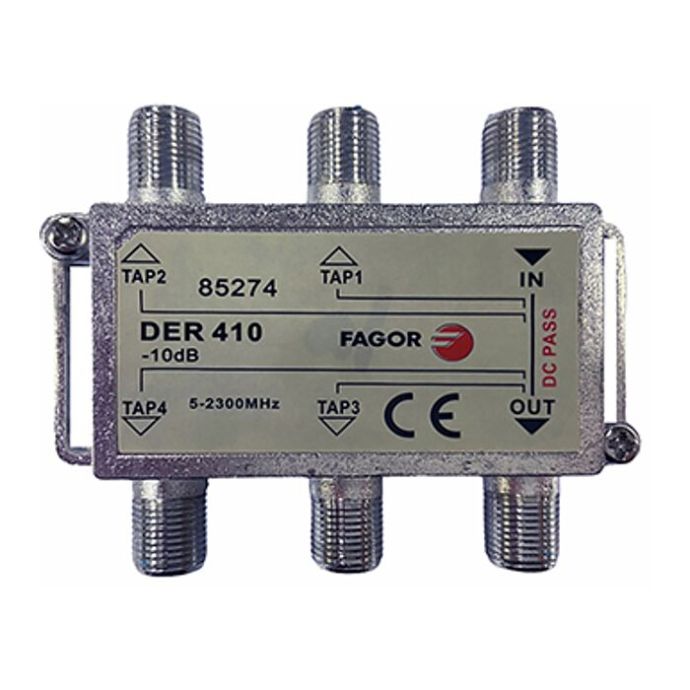

main product photo

Fagor 4-output FI SAT tap-off with F connectors 10 dB

SKU
FAG85274
Brands: Fagor
€6.70
Tax included
% Discount for professionals
Fagor
Availability: On request
1 to 7 days

Fagor DER 410 4-output 1st IF SAT tap-off with F connectors 10 dB

The Fagor DER 410 4-output 1st IF SAT tap-off with F connectors 10 dB is a professional solution for taking part of the signal from a main coaxial line and distributing it independently to four users, homes or outlets. It is especially useful in communal TV/SAT installations where the main signal must continue towards the following floors with enough level.

It works in DTT and satellite 1st IF SAT distribution systems, covering a wide frequency range from 5 to 2300 MHz. Its F-connector format makes it easy to integrate into professional tap-off and splitter installations, particularly in ICT projects, upgrades and coaxial distribution networks.

The DER 410 provides 4 derived outputs with 10 dB tap loss, making it suitable for upper floors where the signal from the rooftop or headend still has a high level. It can be used both in new installations and as a replacement for an existing tap-off with equivalent technical characteristics.

Its shielded construction and F connector connection help ensure stable signal distribution for terrestrial TV and satellite services. A practical passive component for balanced TV/SAT networks in residential buildings, communal systems and professional installations.

Reference: FAG85274

-
+

Extended information about the Fagor 4-output FI SAT tap-off with F connectors 10 dB

Practical applications of the Fagor 4-output FI SAT tap-off with F connectors 10 dB

Example 1: signal distribution on an upper floor of a communal building.

An installer can use the Fagor DER 410 in a vertical coaxial network where the signal arrives with a high level from the headend or antenna system located at the top of the building. The tap-off feeds four outlets, users or homes on the same floor, while keeping the through output available for the lower floors and helping maintain balanced signal distribution throughout the installation.

Example 2: replacement of an old tap-off in a DTT/SAT installation.

During maintenance work, a technician can replace a damaged tap-off or a unit that is not suitable for satellite frequencies with this 5 to 2300 MHz 1st IF SAT tap-off. Its 10 dB tap loss and F-type connectors make it suitable when the goal is to recover stable signal levels on the derived outputs without changing the main distribution layout.

Package contents of the Fagor 4-output FI SAT tap-off with F connectors 10 dB

  • 1 x Fagor DER 410 tap-off, reference 85274

Technical specifications Fagor 4-output FI SAT tap-off with F connectors 10 dB

Feature Value
Brand Fagor
Model DER 410
Manufacturer reference 85274
TDTprofesional SKU FAG85274
Product type 1st IF SAT tap-off
Number of tap outputs 4
Connection type F connector
Frequency range 5 - 2300 MHz
Compatibility DTT and satellite 1st IF SAT
Tap loss 10 dB
Through loss 5-47 MHz 4 dB
Through loss 47-862 MHz 4 dB
Through loss 950-2150 MHz 5 dB
Through loss 2150-2300 MHz 5.5 dB
Directional attenuation 5-47 MHz 25 dB
Directional attenuation 47-862 MHz 27 dB
Directional attenuation 950-2150 MHz 25 dB
Directional attenuation 2150-2300 MHz 25 dB
Isolation between outputs 5-47 MHz 23 dB
Isolation between outputs 47-862 MHz 22 dB
Isolation between outputs 950-2150 MHz 21 dB
Isolation between outputs 2150-2300 MHz 21 dB
Return loss 5-862 MHz 12 dB
Return loss 950-2150 MHz 10 dB
Minimum shielding factor 5-862 MHz 65 dB
Minimum shielding factor 950-2150 MHz 55 dB
Application ICT installations and TV/SAT distribution
Package dimensions for 10 units 205 x 125 x 67 mm
Package weight for 10 units 0.70 kg
More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT & SAT Distribution
SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment Diverter
Entorno Interior
TV-SAT Distribution Connection F
Outputs 4
Input signal DAB, FI, FM, UHF, VHF
Insertion Loss (dB) 10
Usar stock disponible No
Product Brand Fagor
Reviews
Write Your Own Review
You're reviewing:Fagor 4-output FI SAT tap-off with F connectors 10 dB
Your Rating
Product Attachment
File Label Size Download
pdf Ficha TécnicaDerivador 4 Salidas FI SAT con Conector F 10dB de Fagor 68.1 KB Download
