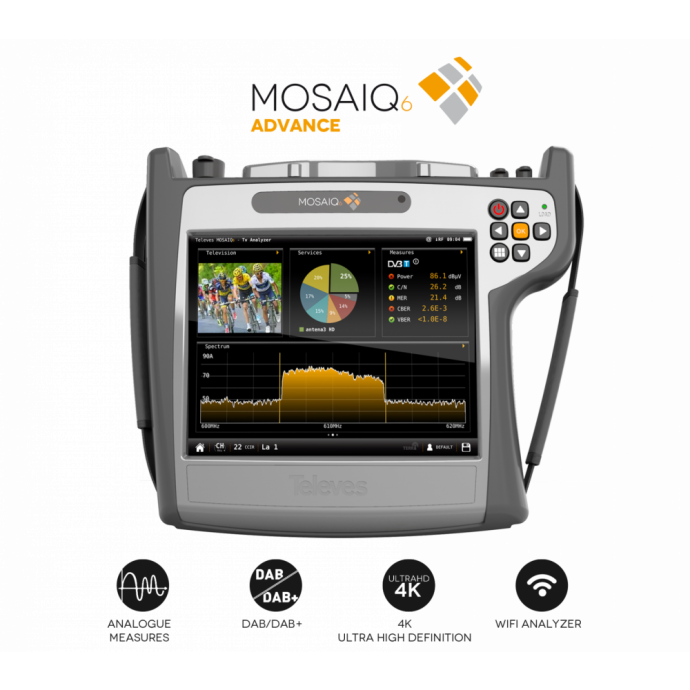

| MOSAIQ6 |
| General Specifications |
| Pantalla |
8” touch screen TFT 1024x468 full color |
| Weight |
2150 g |
| Dimensions |
250x210x60mm (HxWxD) |
| Battery |
Li-ion (7,2VDC, 9000mAh)
intercambiable en campo |
| Autonomy |
> 4 hours |
| Interfaces |
ETH, USB, HDMI, Audio Out (Jack), FC/APC optical fiber connector, GPS antenna connector |
| Storage |
32 GB |
| Technical Specifications |
| Frequency |
| Range |
5 - 3300 MHz |
| Accuracy |
1 KHz |
| Tuning |
Frequency or channel |
| Spectrum analyzer |
| Span |
100 KHz, 1, 5, 10, 20, 50, 100, 200, 500 MHz, 1,0, 2,0, 3,3 GHz and other (any value between 100 KHz and 3,3 GHz) |
| RBW |
500 Hz, 1, 3, 5, 10, 30, 50, 100, 300, 500 KHz, 1, 3, 5 MHz |
| Marks |
Up to 4, with delta feature |
| Event trigger |
✓ |
| Waterfall |
✓ |
| Hold feature |
Maximum and minimum |
| Reference level |
Automatic and manual |
| DVB-T Digital measurements |
| Modulations |
COFDM (QPSK, 16QAM, 64QAM) |
| Power |
From 20 to 128 dBμV |
| CBER |
9.9E-2 – 1.0E-6 |
| VBER |
1.0E-3 – 1.0E-8 |
| MER |
Up to 40dB |
| C/N |
Up to 52dB |
| Echoes |
✓ |
| MER by carrier |
✓ |
| Constellation |
✓ |
| Error packets |
✓ |
| TILT |
✓ |
| Attenuation |
✓ |
| DVB-T2 Digital measurements |
| Modulations |
COFDM (QPSK, 16QAM, 64QAM and 256QAM) |
| Power |
From 20 to 128 dBμV |
| LDPCBER* |
9.9E-2 – 1.0E-6 |
| BCHBER* |
1.0E-3 – 1.0E-8 |
| Link Margin |
Up to 40dB |
| MER |
Up to 40dB |
| C/N |
Up to 52dB |
| Echoes |
✓ |
| MER per carrier |
✓ |
| Constellation |
✓ |
| Error packets |
✓ |
| TILT |
✓ |
| Attenuation |
✓ |
| Multiple PLP |
✓ |
| QAM Digital Measures (ANNEX A/B/C) |
| Modulations |
4QAM, 16QAM, 32QAM, 64QAM and 256QAM |
| Power |
From 20 to 128 dBμV |
| BER |
1.0E-3 – 1.0E-8 |
| MER |
Up to 40dB |
| C/N |
Up to 52dB |
| Constellation |
✓ |
| Error packets |
✓ |
| TILT |
✓ |
| Attenuation |
✓ |
| DVB-S Digital Measures |
Wideband
(only compatible HW) |
230 - 2400 MHz |
| Power |
From 20 to 128 dBμV |
| CBER |
9.9E-2 – 1.0E-6 |
| VBER |
1.0E-4 – 1.0E-8 |
| MER |
Up to 20dB |
| C/N |
Up to 30dB |
| Constellation |
✓ |
| Error packets |
✓ |
| TILT |
✓ |
| Attenuation |
✓ |
| DVB-S2X Digital Measures |
Wideband
(only compatible HW) |
230 - 2400 MHz |
| Modulations |
QPSK, 8PSK, 8APSK, 16APSK and 32APSK |
| Power |
From 20 to 128 dBμV |
| LDPCBER* |
9.9E-2 – 1.0E-6 |
| BCHBER* |
9.9E-2 – 1.0E-8 |
| Link Margin |
Up to 10dB |
| MER |
Up to 10dB |
| C/N |
Up to 30dB |
| Constellation |
✓ |
| Error packets |
✓ |
| TILT |
✓ |
| Attenuation |
✓ |
| Multi TS |
✓ |
| PLS scrambling |
✓ |
| DVB-S2 Digital Measures |
Wideband
(only compatible HW) |
230 - 2400 MHz |
| Modulations |
QPSK, 8PSK, 8APSK, 16APSK and 32APSK |
| Power |
From 20 to 128 dBμV |
| LDPCBER* |
9.9E-2 – 1.0E-6 |
| BCHBER* |
9.9E-2 – 1.0E-8 |
| Link Margin |
Up to 10dB |
| MER |
Up to 20dB |
| C/N |
Up to 30dB |
| Constellation |
✓ |
| Error packets |
✓ |
| TILT |
✓ |
| Attenuation |
✓ |
| Multi TS |
✓ |
| FM |
| Level |
✓ |
| C/N |
Up to 52dB |
| RDS |
✓ |
| DAB/DAB+ (**Opc. 596204) |
| Power |
From 20 to 128 dBμV |
| MER |
Up to 20dB |
| C/N |
Up to 30dB |
| BER* |
9.9E-2 – 1.0E-6 |
| ANALOGUE TV (**Opt. 596203) |
| Level |
From 20 to 128 dBμV |
| V/A |
Up to 52dB |
| C/N |
Up to 30dB |
| Features |
| User-customizable widgets on screen |
Up to 6 |
| Scan System with measurements and learning plan |
✓ |
| LTE Check |
✓ |
| F.O. |
Refs. 596101/02/05 |
| F.O. Selectivo |
Refs. 596111/12/15 |
| GPS Drive Test |
Opt. 596201 |
| MPEG2, MPEG4 Full HD channels visualization |
✓ |
| 4K visualization |
Opt. 596205** |
| MPEG info |
SID, VID, AID, Resolution, Profile, Audio Bitrate, Video Bitrate, Resolution info |
| IPTV Analyzer |
✓ |
| WiFi Analyzer |
2,4GHz and 5GHz (Opt. 596202**) |
| Units |
dBμV, dBmV, dBm |
| Network tools |
✓ |
| Pre-amplifiers powering |
| Pre-amplifiers powering |
5, 13, 18, 24 Vdc and other
(any value between 5 and 24V) |
| Max. supplied power |
12W |
| Max. supplied current |
900 mA |
| LNB tone |
22 KHz |
| DiSEqC |
✓ |
| SCR (EN50494) | dCSS (EN50607) |
✓ |
