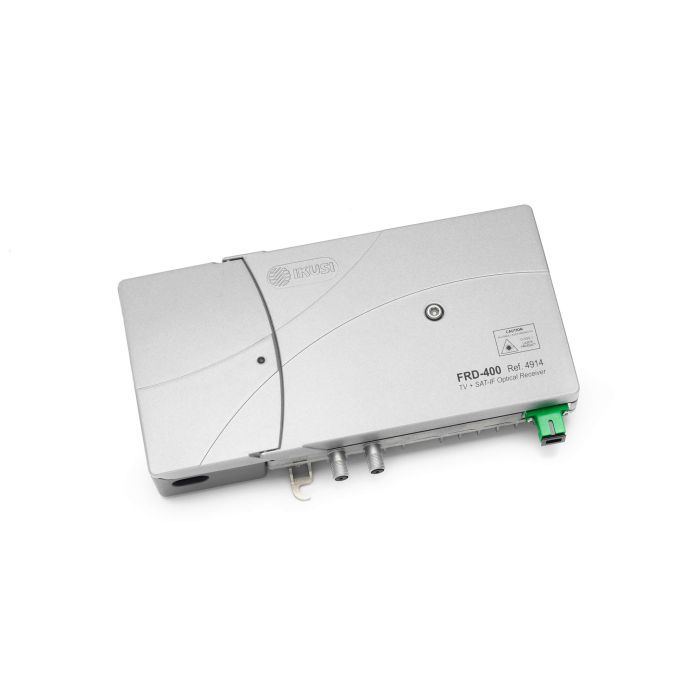

Ikusi FRD-400 Terrestrial + Satellite Optical Receiver

SKU
IKU4914
Brands: Televes Ikusi
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€409.68 Tax included
Televes , Ikusi

Terrestrial and Satellite Optical Receiver FRD-400 Ikusi 4914

Equipment to convert 1 SC/APC optical input (1290-1600 nm) to 1 Terrestrial (45-862 MHz) + Satellite (950-2150 MHz) RF output. Optical receiver with high output level (104 dBμV) for large collective distributions, such as community rooms with indoor blocks.

This system allows the distribution of the amplified TV+SAT signal from the headend to each building, crossing long stretches with hardly any losses through a single-mode optical fiber. The receiver adapts the optical signal to RF to distribute it by coaxial cable throughout the building.

Receiver protected in a high-shielded Zamak box, for wall mounting in indoor areas, with provision for grounding.

Terrestrial and Satellite Optical Receiver (45-2150 MHz) for large collective installations

What technical specifications does the Ikusi 4914 Optical Receiver have?

  • Model: FRD-400
  • Reference: 4914
  • Optical input power: -12 .. + 1 dBm (1)
  • Direct RF output frequency bands:
  • TV: 45-862 MHz
  • IF: 950-2150 MHz
  • Wavelength: 1290-1600 nm
  • Optical input return loss:> 50 dB / Hz
  • Optical input connector: SC / APC 8º
  • Band ripple:
    • TV: ± 1.5 dB
    • IF: ± 2 dB
  • Receiver output level for 20 digital channels. For 76dBμV input to the transmitter and -12dBm input to the receiver: 104 dBμV
  • Receiver output level for 20 analog channels. For 72dBμV input to the transmitter and -4dBm input to the receiver: 100 dBμV
  • CNR (*):
    • Analog TV (ΔΒ = 5 MHz):> 52 dB
    • IF (ΔΒ = 36 MHz):> 36 dB
  • CTB (*):> 60 dB
  • CSO (*):> 60 dB
  • Variable TV attenuator: 0-15 dB
  • TV slope adjustment: 0-15 dB
  • Variable IF attenuator: 0-15 dB
  • IF slope adjustment: 0-10 dB
  • Output return losses:
    • TV:> 12 dB
    • IF: 10 dB
  • Output test: -30 dB
  • Output and test connectors type: F
  • Mains voltage: 230-240 VAC
  • Consumption: 15 W
  • Dimensions: 222 x 140 x 44 mm

(*) Measured on a typical 1310nm transmission system with FTD-420 laser emitter.

(1) Values ​​for digital channels.

More Information
EAN8435136449140
ColorGray
Product BrandIkusi
EntornoInterior
