Mast Amplifier 4in (FM-BIII/DAB-UHF-UHF) 36dB LTE 5G

SKU

TEL535820

Brands: Televes

Availability: In stock

Delivery: 24/48 Hours

€39.59 Tax included

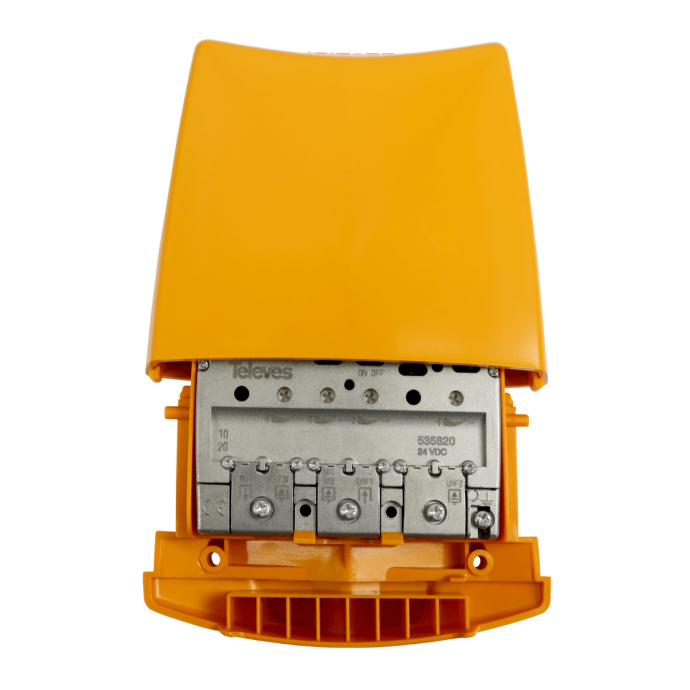

Mast Amplifier 4 Inputs: FM-BIII/DAB-UHF-UHF 36dB LTE 5G Televes 535820

Mast amplifier with 4 terrestrial inputs: FM-BIII/DAB-UHF-UHF. Adapted to the 2nd Digital Dividend with integrated 5G filter. It works at 24Vdc and allows the power pass to the UHF1 input to feed another preamp or an active antenna.

External amplifier with high gain (36dB) and high output level (113dBμV). Its EasyF connection system simplifies installation by not using connectors on the cable, but it is connected directly stripped.

The amplifier is designed to be mounted on the antenna mast, as it has an ABS plastic case that protects it from the elements. The equipment includes a plastic flange for fixing to the mast.

Details

Mast Amplifier 4 Inputs (FM-BIII/DAB-UHF-UHF) LTE 5G with 36dB of Gain and 113dBμV of Output

What technical specifications does the Televes 535820 Mast Amplifier have?

Bands			FM	BIII/DAB	UHF 1	UHF 2
Frequency margin	MHz		88 ... 108	174 ... 254	470 ... 694
Gain	dB		15	32	36
Gain adjustment range	dB		0 ... 20	0 ... 20	0 ... 20
Max.output level	dBμV	EN 50083 (-35dB)	122	122	123
		DIN 45004B	115	115	116
		EN 50083 (-60dB)	112	112	113
Noise figure	dB		---	4	9
Output level regulation margin	V /mA		24 / 80
Max current through inputs	OFF	mA	-
	ON		-	-	45	-
Protection Level	IP		23
Temperature operat. limits	ºC		-5 ... +45

More Information

More Information
EAN	8424450215012
System	DTT
SERIE	Brida Connector
Color	Orange
Type	Mast amplifier
Entorno	Exterior
# Inputs	4
Outputs	1
Gain	36
Max. output level Ganancia (dB/uV)	113
LTE compatible	No
Current bypass	Terrestrial
Product Brand	Televes
