MiniKom EasyF Broadband Multiband Amplifier FM-VHF-UHF-UHF-SAT LTE 5G Televes 562221

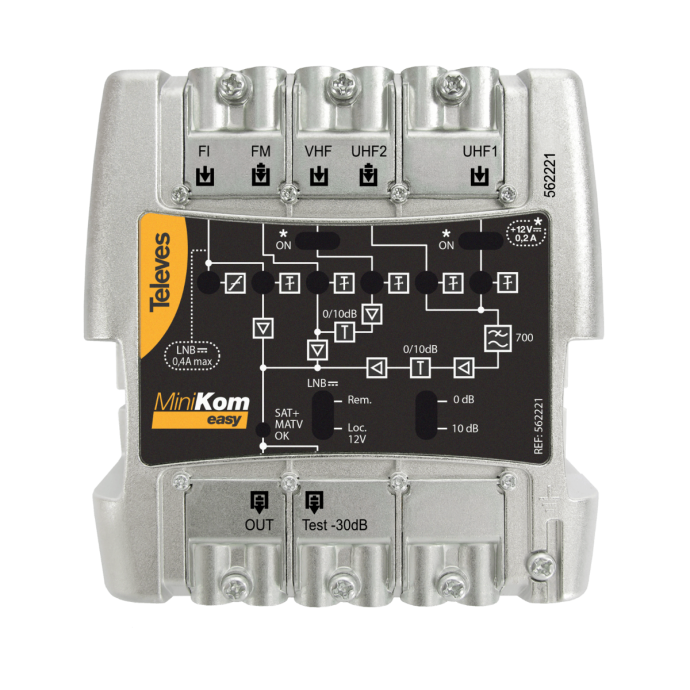

Headend multiband amplifier for terrestrial and satellite signal amplification. It consists of 5 inputs (FM-VHF-UHF-UHF-SAT), of which the VHF and UHF have 2 selectable gain margins, while FM and SAT only have one amplifier stage. The SAT stage incorporates a switch to select the LNB power supply locally (through the amplifier itself) or remotely (from a receiver or other external source).

Central amplifier adapted to the 2nd Digital Dividend with integrated 5G LTE filter. It offers 36dB of gain for UHF and up to 42dB for SAT, and supports 115dBμV maximum output level. Manually configurable gain through switches (high/low). The amplifier admits DC current pass to all inputs, except FM, to power previous equipment and BOSS antennas.

Very compact broadband amplifier (103x103x50mm) with EasyF connection system. It has a test output (-30dB) to be able to carry out checks without interrupting the service. Low consumption integrated power supply.

Details

MiniKom EasyF 5-Input Multiband Amplifier (FM-VHF-UHF-UHF-SAT) with 5G LTE filter

What technical specifications does the MiniKom EasyF Televes 562221 have?

Bands			FM	VHF	U1-U2	SAT
Frequency margin		MHz	88...108	174...400	470...694	950...2150
Gain	0	dB	15	34	36	42
	10			24	26
Gain adjustment range			Manual 0 ... 20	Manual 0 ... 20	Manual 0 ... 20	Manual 0 ... 30
Input equalizer			-	-	-	Manual 0...15
Max. output level	IMD3 (2ch, -35dB)	dBμV	120	121	122	123
	DIN 45004B		113	114	115	-
	IMD3 (2ch, -60dB)		-	111	112	-
	IMD2 (2ch, -60dB)		-	>101	-	-
Noise figure		dB	6	5	7	11
Test			-30
Local power supply LNB		V	-			12
Maximum local current LNB		mA	-			400
Remote power supply LNB		V	-			V_RX
Maximum remote current LNB		mA	-			500
Power supply inputs		V	-	12	12	-
Max. current through inputs		mA	-	200	200	-
			400
Mains voltage / frequency		V~ /Hz	220 - 230 / 50-60
Total AC consumption (without input powering)	OFF	W, mA	6.5 / 70
Total AC consumption (with input powering)	ON	W, mA	12.5 / 120
Protection index		IP	20
Operating temperature range		ºC	-5 ... +45

More Information

More Information
EAN	8424450228487
System	DTT & SAT
SERIE	MiniKom
Color	Gray
Type	Broadband station
Entorno	Interior
Input signal	DAB, FI, FM, UHF, VHF
# Inputs	5
Outputs	1
Gain	36
Max. output level Ganancia (dB/uV)	115
LTE compatible	Yes
Current bypass	Satellite, Terrestrial
Product Brand	Televes
