Multiband DTT and Satellite Amplifier with LTE 4G/5G

SKU

JOH7785

Brands: Johansson

Availability: On request

Delivery: 1 to 7 days

€136.81 Tax included

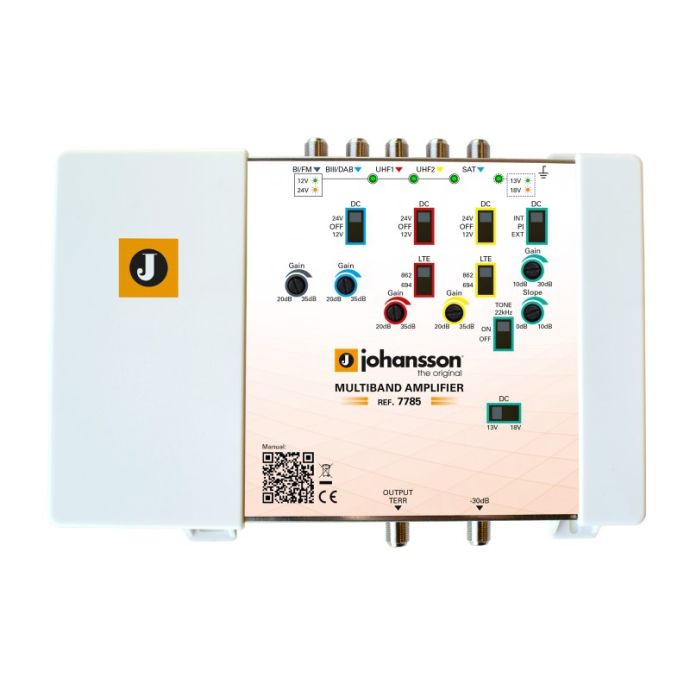

Johansson 7785 Multiband Amplifier

Broadband central with 5 inputs: BI/FM, BIII/DAB, UHF1, UHF2 and SAT. This equipment offers an adjustable gain of 35dB ±15dB and a maximum output of 118dBμV. The DTT (UHF) inputs integrate a switchable 4G/5G LTE filter to adapt your feedback system to the 2nd Digital Dividend.

The Johansson 7785 amplifier allows voltage to be sent through the DAB, UHF1/2 and SAT inputs. So it feeds active DTT antennas and the LNB of the Satellite antenna if necessary. This amplifier offers you a great flatness of gain as well as a very low noise level to guarantee a quality and constant TV reception. It supports a high level of input that makes it almost impossible to saturate the equipment.

Details

Multiband amplifier for DTT and Satellite with DC current passage and integrated LTE1/2 filter.

What are the main features of the Johansson 7785 multiband amplifier?

5 inputs: BI/FM, BIII/DAB, UHF1, UHF2, SAT
Separate band amplifiers with inter-stage attenuators and 20 dB dynamic range
High gain and output power
High level of entry that ensures that it is virtually impossible to saturate the team
Compact housing
Detachable power supply (included)
Test output (-30dB)
Compliant with RED standard:

Better filtering of 5G LTE signals
Best noise figure
Higher output level
Better flatness of profit (470-694 Mhz)

What technical specifications does the Johansson 7785 broadband amplifier have?

Inputs	-	BI/FM BIII/DAB UHF1 UHF2 SAT
Frequency range	MHz	BI/FM: 47 - 108 BIII/DAB: 174 - 240 UHF1: 470-694 or 862 (switchable) UHF2: 470-694 or 862 (switchable) SAT 950-2400
Gain	dB	BI/FM: 10-30 BIII/DAB: 10-30 UHF1: 15-35 UHF2: 15-35 SAT: 10-35
Slope adjustment	dB	SAT: 0-10
Max. input power	dBµV	BI/FM (-60dBc): 94 BIII/DAB (-60dBc): 92 UHF1 (-60dBc): 96 UHF2 (-60dBc): 96 SAT (-35dBc): 97
Max. output power	dBµV	BI/FM (-60dBc): 118 BIII/DAB (-60dBc): 119 UHF1 (-60dBc): 118 UHF2 (-60dBc): 118 SAT (-35dBc): 115
Noise figure	dB	BI/FM: 4.5 BIII/DAB: 4 UHF1: 5.5 UHF2: 5.5 SAT: 7.5
Return loss	dB	>10
Test Port	dB	-30
Remote Power	V	OFF - 12V - 24V
DC Mode	mA	BIII/DAB: 100 UHF1: 100 UHF2: 100
DC Mode SAT	V	OFF - 13V - 18V - 22kHz (Selection: internal, power inserter or external)
SAT remote power	mA	350
RED selectivity classification	-	0 and 1
Supply voltage	VAC	100 - 240
Power consumption	W	29
Dimensions	mm	217 x 165 x 59

More Information

More Information
EAN	2077850000014
System	DTT & SAT
SERIE	F-connector
Color	White
Type	Broadband station
Entorno	Interior
# Inputs	5
Outputs	1
Gain	35
Max. output level Ganancia (dB/uV)	118
LTE compatible	No
Current bypass	Satellite, Terrestrial
Product Brand	Johansson
