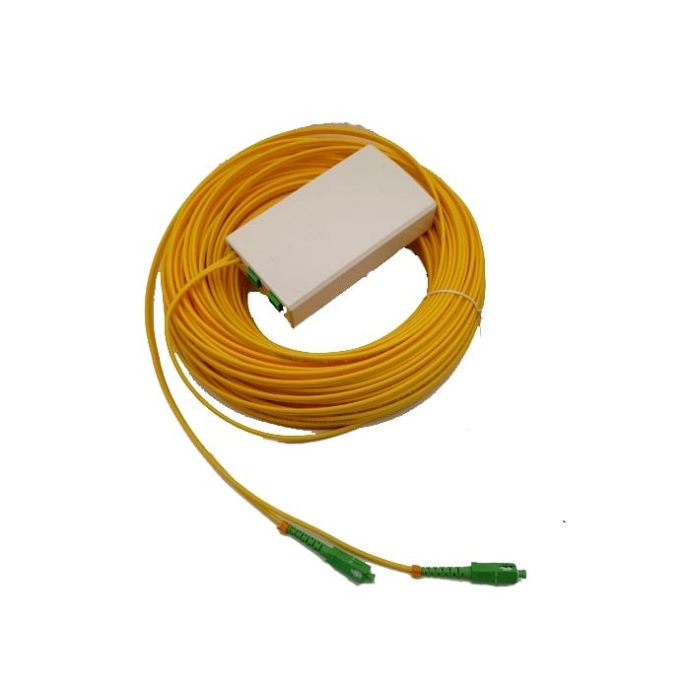

GTLAN 2-output SC/APC fiber optic PAU with 70 m LSZH 3 mm pre-terminated 2-fiber cable at both ends.

Extended information about GTLAN 2-output SC/APC fiber optic PAU with 70 m LSZH 3 mm pre-terminated duplex cable

Practical applications of the GTLAN 2-output SC/APC fiber optic PAU with 70 m LSZH 3 mm pre-terminated duplex cable

Example 1: Local network interconnection between adjacent industrial buildings:

A logistics company expands its facilities by adding a second warehouse located approximately 55 metres from the main building. To extend the local network without being affected by the electromagnetic interference generated by warehouse machinery, the installation team uses this 70-metre pre-terminated fibre optic cable routed through a protected outdoor conduit. Its 3 mm diameter allows it to pass easily through existing narrow ducts, while the surface-mounted termination box is fixed to the wall next to the network switch in the new warehouse. The connectors at the opposite end are simply plugged into the main rack, providing an immediate Gigabit fibre link without the need to hire a specialist equipped with a fibre fusion splicer.

Example 2: Fiber link between two office floors:

In an office distributed across two levels, this pre-terminated fiber optic cable can be used to create a point-to-point link between racks, technical registers or network points separated by up to 70 metres. The installer has two G.657.A2 single-mode fibers available for transmit and receive paths, with an indoor LSZH jacket and SC/APC termination for direct integration into the optical network.

Package contents of the GTLAN 2-output SC/APC fiber optic PAU with 70 m LSZH 3 mm pre-terminated duplex cable

• Pre-terminated surface-mounted fiber optic box.
• 70 m duplex single-mode fiber optic cable.
• SC/APC connectors pre-terminated at both ends.
• Individual packaging.

Technical specifications GTLAN 2-output SC/APC fiber optic PAU with 70 m LSZH 3 mm pre-terminated duplex cable
