SC/APC-SC/APC Hose Cover 1.9mm 20m LFO-010 REF. 8075 with Handle

Availability: On request
SKU:
IKU8075
1 to 7 days
€14.52 Tax included
Ikusi

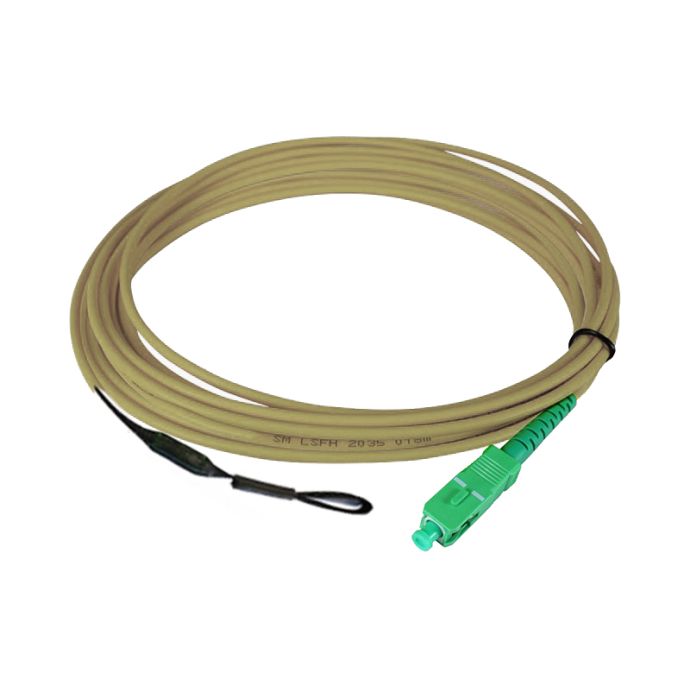

20 meter SC/APC Fiber Optic Patch Cord Ref. 8075 by Ikusi with Handle

Single-mode fiber optic patch cord with SC/APC type pre-connected connectors at both ends and includes a handle that facilitates installation in your fiber optic distribution.

The LFO-101 cable has a length of 20 meters, Euroclass Dca s2, d2, a2. It has a core diameter of 9 μm and a very small radius of curvature (20mm).

Very flexible and robust it comes in ivory, and also includes a handle to facilitate its installation.

1 to 7 days

Technical Specifications of the 20 meter SC/APC Fiber Optic Patch Cord Ref. 8075 from Ikusi with Handle



MODEL

LFO-010

LFO-015

LFO-020

LFO-025

REF.

8073

8074

8075

8076

Number of fibers

1

Cable length

10 m

15 m

20 m

25 m

Colour

Ivory

Euroclass

Dca s2, d2, a2

Type of fiber

ITU-T-G657A2

Fiber core diameter

9 μm

Fiber coating diameter

125 μm

Diameter of the primary fiber protection

250 μm

Cable structure

Adjusted sub-group

Diameter of the fiber structure

0,85 mm

Outer shell diameter

3 mm

Outer shell material

LSFH

Attenuation 1310 nm

< 0,8 dB/km

Attenuation 1490 nm

< 0,8 dB/km

Attenuation 1550 nm

< 0,8 dB/km

Insertion losses in connector 1, 2

< 0,5 dB

Insertion losses in connector 1, 2

> 60 dB

Optical connector type 1, 2

SC

Polishing type (connector 1, 2)

APC

Short voltage

450 N

Long tension

200 N

Reinforcement element of the structure

Aramid fibers

Reinforcement element of the structure

15 mm

Operating temperature

-20 ... 70 ºC

1 to 7 days
More Information
EAN 8435136480754
Fiber type Singlemode
Entorno Interior
Product Brand Ikusi
Write Your Own Review
You're reviewing:SC/APC-SC/APC Hose Cover 1.9mm 20m LFO-010 REF. 8075 with Handle
Your Rating
Icon Label Size Download
pdf Ficha Técnica Latiguillo SC/APC ikusi LFO-0XX 157.1 KB Download
