Semi-manageable Switch 8 Giga POE Ports and 2 Uplink SFP 65W from D-Link

SKU

DGS-1210-08P

Brands: D-Link

Availability: On request

Delivery: 1 to 7 days

€168.24 Tax included

D-Link Semi-Manageable Switch 8 Giga POE Ports and 2 Uplink SFP Ports

This D-Link switch belongs to the high-end DGS-1210 series for enterprise class. It allows unified management with WiFi access points in D-Link's free Nuclias Connect software.

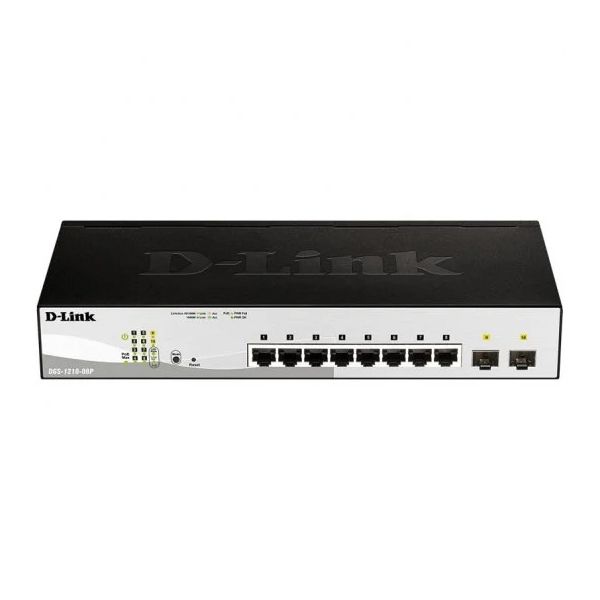

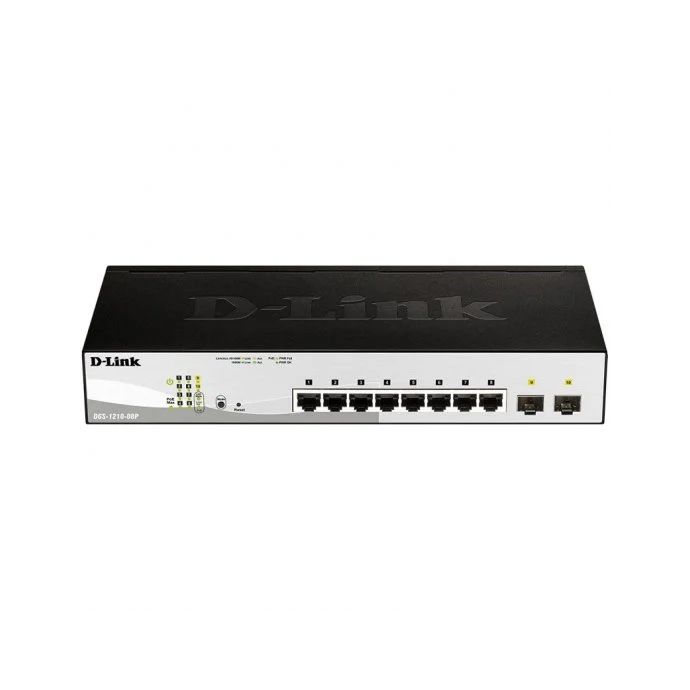

This switch supports a 16K MAC table, and can be managed through a web interface. On its front side we find the 8 gigabit ethernet ports plus the 2 Uplink SFP ports (ports 9 and 10), which are protected by a plastic to prevent dust from entering. We also find the reset button and leds that indicate the status of the 10 ports. In its rear part we find the kensistong connector to prevent it from being stolen, a ground connection and the power connector (comes with the power cable included).

In addition, it also includes the accessories for installation in a rack. This switch comes with the metallic housing, which provides robustness and comes in black color. It allows power supply through POE port, with a maximum power of 65W.

Details

Technical Specifications of the D-Link Semi-Manageable Switch with 8 Giga POE Ports and 2 Uplink SFP Ports

Technical Specifications
General	DGS-1210-08P
Port Standards & Functions	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3x Flow Control for Full-Duplex Mode, IEEE 802.3af compliance, IEEE 802.3at compliance, Auto-negotiation
Number of Ports	• 8 x 10/100/1000BASE-T PoE ports • 2 x SFP ports
Network Cables	UTP Cat. 5, Cat. 5e (100 m max.); EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex	Full/half duplex for 10/100 Mbps speeds; Full duplex for Gigabit speed
Media Interface Exchange	Auto or configurable MDI/MDIX
Performance
Switching Capacity	20 Gbps
Transmission Method	Store-and-forward
MAC Address Table	8K entries per device
MAC Address Update	Up to 256 static MAC entries, Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate	14.9Mpps
Packet Buffer Memory	4.1 Mbits
PoE
PoE Standard	IEEE 802.3af and IEEE 802.3at
PoE Capable Ports	Ports 1 to 8: Up to 30 W
PoE Power Budget	Max. 65 W
Physical & Environment
AC Input	54.0 V DC external power adapter
Maximum Power Consumption	PoE Enable: 80.6 W PoE Disable: 7.5 W
Standby Power Consumption	2.5 W
Fan Quantity	0
Acoustics	0 dB(A)
Heat Dissipation	275.04 BTU/hr
Operation Temperature	-5 to 50 ˚C (23 to 122 ˚F)
Storage Temperature	-20 to 70˚C (-4 to 158 ˚F)
Operation Humidity	0% to 95% non-condensing
Storage Humidity	0% to 95% non-condensing
Dimensions	280 x 126 x 44 mm 19” standard rack mounting width, 1U height
Weight	0.95 kg
Diagnostic LEDs	Power (per device), Link/Activity/Speed/PoE (per 10/100/1000 Mbps port), Link/Activity/Speed (per SFP port), Button to switch LED display mode between PoE and Link/Activity
MTBF	729,258 hours
Certifications and Safety	CE Class A, cUL, CE LVD
