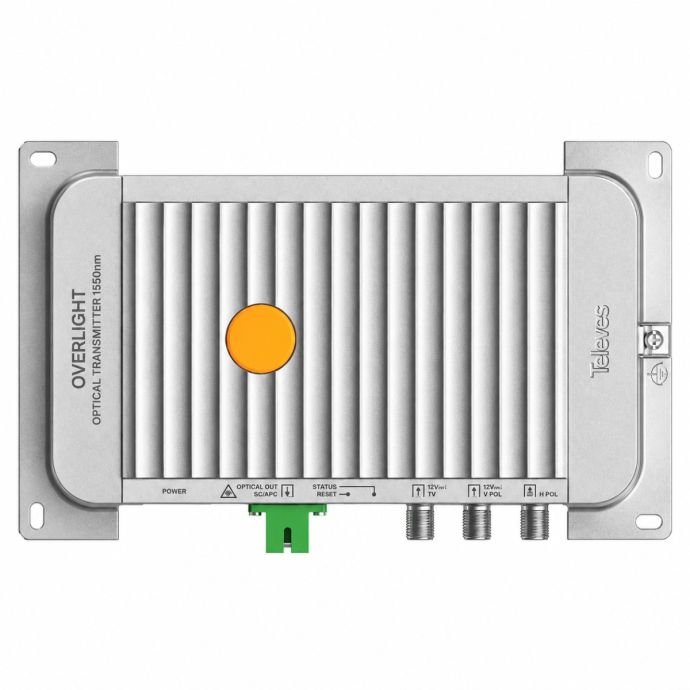

The Televes 237604 converts FM/DAB/UHF terrestrial TV signals and satellite signals from a WideBand LNB into an optical signal for distribution over fibre. Its 1550 nm output with 9 dBm optical power enables TV networks with low signal loss and high immunity to interference.
Designed for the Televes Overlight system, it features one 47–694 MHz terrestrial input and two 290–2340 MHz V/H WideBand satellite inputs. Its high optical output level enables fully passive distribution to up to 64 users, while CWDM technology allows it to be combined with other transmitters to carry up to 4 complete satellites plus DTT over a single optical fibre. It is also compatible with GPON deployments.
It is particularly suitable for installers working on new collective fibre-optic TV installations, apartment buildings and residential projects where reducing intermediate active equipment and simplifying signal distribution are priorities. It is not a specific replacement part. The unit provides 18 dB gain and adjustable equalisation up to 12 dB on its SAT inputs, plus integrated Bluetooth® for configuration and monitoring through ASuite. The headend can be completed with a Televes WideBand LNB and combined with equipment for fibre optic TV distribution available from TDTProfesional.
Overall, the Televes 237604 Overlight optical transmitter provides a professional solution for converting terrestrial and WideBand SAT signals to optical format, making high-capacity installations easier to deploy with less coaxial cabling, passive distribution to multiple users and wireless configuration directly at the installation point. Its robust Zamak chassis and integrated power supply complete a device designed for professional installations.
Extended information about Indoor Overlight Optical Transmitter FM/DAB/UHF/SAT 1550nm/9dBm Televes
Practical applications of the Indoor Overlight Optical Transmitter FM/DAB/UHF/SAT 1550nm/9dBm Televes
Example 1. Distribution of DTT and satellite TV in a residential building:
In a collective residential installation, the Televes 237604 can receive terrestrial FM/DAB/UHF signals together with the vertical and horizontal outputs from a WideBand LNB and convert them into a single optical distribution system. Its 9 dBm optical output power makes it possible to design a passive fibre network for up to 64 users, reducing intermediate active equipment and maintaining signal quality over long distribution distances.
Example 2. Multi-satellite headend using a single optical fibre:
In projects where several satellite positions must be distributed together with terrestrial television, the 1550 nm CWDM output can be combined with other Overlight transmitters working at different wavelengths. This allows installers to transport up to four complete satellites plus DTT over one fibre, reducing cabling requirements and simplifying risers and backbone distribution in apartment blocks or large collective installations.
Package contents of the Indoor Overlight Optical Transmitter FM/DAB/UHF/SAT, CWDM 1550 nm 9 dBm
