Televes Overlight Indoor Optical Transmitter FM/DAB/UHF/SAT 1570nm/9dBm

Indoor Overlight Optical Transmitter FM/DAB/UHF/SAT, CWDM 1570 nm 9 dBm

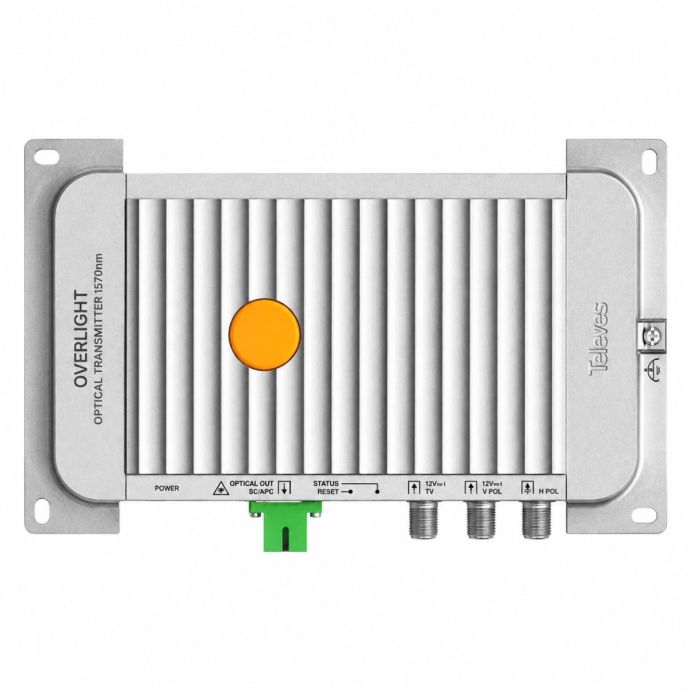

The Televes 237605 Overlight converts FM/DAB/UHF terrestrial TV signals and satellite signals from a WideBand LNB into a single optical signal. It is particularly suitable for collective installations where TDT and satellite signals need to be carried over a single fibre, reducing cabling and simplifying the distribution infrastructure.

It operates within the Televes Overlight system, featuring an SC/APC optical output at 1570 nm with 9 dBm optical power, allowing passive distribution to up to 64 users. Thanks to CWDM technology, its signal can be multiplexed with other compatible transmitters to carry up to four complete satellites plus terrestrial TV over the same fibre. To complete this type of network, see our fibre optic TV distribution equipment.

The WideBand V/H satellite inputs feature 18 dB gain and adjustable equalisation from 0 to 12 dB, helping compensate for coaxial cable losses when the LNB is located far from the headend. It also supports remote powering and Bluetooth configuration and monitoring via ASuite. These features make it particularly suitable for installers working on communal systems and collective headends who need to simplify deployment while maintaining precise signal control. It can be combined with an Overlight optical receiver at the reception points.

Overall, the Televes 237605 optical transmitter provides a professional solution for distributing terrestrial and satellite signals over fibre optics, benefiting from low transmission losses and immunity to interference. It is specifically designed for indoor use and is not a dedicated replacement part, but a headend device suitable for new installations or upgrades to collective Overlight networks.

Reference: TEL237605
