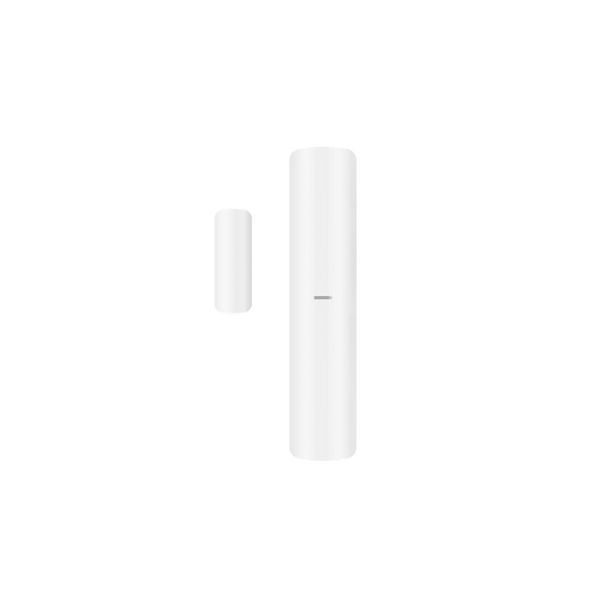

AXPRO Hikvision Wireless Tri-X Magnetic Opening Contact

Availability: In stock
24/48 Hours
€28.19 Tax included

AXPRO Hikvision DS-PDMC-EG2-WE Wireless Tri-X Magnetic Opening Contact

Use these sensors on doors or windows to detect the entry of intruders into your home within your AXPRO alarm system. These wireless magnetic contacts use Tri-X technology, providing a high performance level of security as well as simple. They communicate bi-directionally with the DS-PWA64-L-WE or DS-PWA96-M-WE control panel (which is required for proper operation).

They are very easy to install as they adapt to any type of door or window thanks to their metal base. They are discreet, elegant and have a slim design, so you can place them and they will not change the aesthetics in your home.

It has protection against manipulations.

It contains an LED indicator and uses AES-128 encryption. It has an extension of 2 wired inputs. It works with a CR123A battery.

24/48 Hours

Technical specifications of AXPRO Hikvision DS-PDMC-EG2-WE Tri-X Wireless Magnetic Opening Contact


  • Detection Performance

Detection MethodOpening Contact

Detection Gap43mm Max

  • Característic

Digital ProcessingSupport

Tamper ProtectionFront;Rear

Environment Temperature IndicatorSupport

Signal Strength IndicatorSupport

  • Interfaz

Alarm Input Normally Closed;Normally Open;Impulse Count

Power Switch Power Up Enrolling

LED  Indicaotor Blue (Alarm)

  • Transmission

Transmission Technology Tri-X Wireless

Transmission Method Two-Way RF Wireless

Transmission Frequency 868MHz

Transmission Security AES-128 Encryption

Transmission Range(Free Space) 1.6Km

Frequency Hopping Support

Enrolling Method Power up;Remote ID;QR Code

  • Electrical Characteristics

Standard Battery Life 5 years in work status (being triggered 20 times per day)

Fuente De Alimentación Battery Powered

Battery Type CR123A x 1

Typical Voltage 3V

  • General

Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)

Temperatura De Almacenamiento -20 °C to 60 °C (-4 °F to 140 °F)

Operation Humidity 10% to 90%


22.5mm × 103mm × 23.2mm

13mm × 34.4mm × 11.4mm


Application Scenarios Indoor

24/48 Hours
More Information
EAN 6941264054344
Color White
Automation Window/Door Sensor
Product Brand Hikvision
Write Your Own Review
You're reviewing:AXPRO Hikvision Wireless Tri-X Magnetic Opening Contact
Your Rating
Icon Label Size Download
pdf Ficha Técnica Contacto magnético inalambrico DS-PDMC-EG2-WE 632.1 KB Download
