Repetidor Inalámbrico Compatible Bidireccional 868MHz Tri-X Hikvision

Brands: Hikvision
Availability: Out of stock
€88.90 Tax included

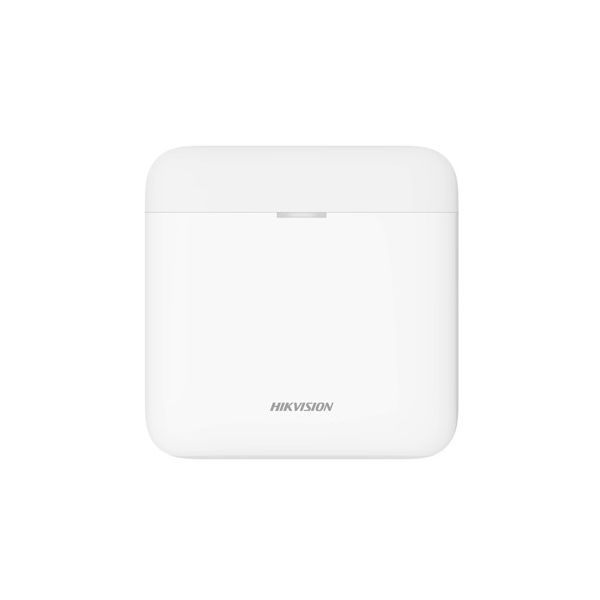

Hikvision DS-PR1-WE Bidirectional 868MHz Tri-X Compatible Wireless Repeater

Do you want to extend your RF signal in an AXPRO alarm system? Well this is what you need. With this repeater you can increase the range of the signal up to 1600 meters in open field.

The device is easily configured through the APP and can automatically pair up to 8 PIRCAMs or smoke detectors. Compatible with AXPRO alarm systems, with Tri-X and Cam-X technology.

This repeater ensures greater reliability, since it has protection against manipulation. You will be able to know the status of the device thanks to a built-in LED indicator (register/signal/power/fault).

In addition, it is equipped with 2 useful serial ports for debugging. It uses AES-128 encryption, which makes the system very safe and reliable.

Its built-in backup battery gives us up to 35 hours of autonomy.

Technical Specifications Compatible Bidirectional Wireless Repeater 868MHz Tri-X Hikvision DS-PR1-WE

Technical characteristics

  • Software features
  • Tamper-Proof - 1, Front and Back
  • Auto Paring - Supported
  • PIRCAM Paring - Supported
  • Hardware features
  • Puerto Serial - 2, for debug
  • Interruptor de alimentación - 1
  • RF transmission
  • RF method - Two way communication
  • RF Modulation - 2GFSK
  • RF Frequency - 868MHz
  • RF Distance - 1600m (Open area)
  • Wireless Security - AES-128
  • Electrical characteristics
  • Power supply - 100VAC ~ 240VAC
  • Battery type - Built in Battery Li
  • Battery life span - Up to 35 hours
  • Screen
  • LEDs Status - 3, Register/Signal (Green/Red), Power (Green), Fault (Amber)
  • General
  • Operation temperature - ﹣10℃~+55℃
  • Operation humidity - 10%~90%
  • Shell material - Plastic
  • Dimension(WxHxD) - 150*150*25mm
  • - 372g
  • Color - White
  • Installation method - Wall Mounting
More Information
Product BrandHikvision
Write Your Own Review
You're reviewing:Repetidor Inalámbrico Compatible Bidireccional 868MHz Tri-X Hikvision
Your Rating
File Label Size Download
pdf Ficha técnica Repetidor bidireccional Hikvision 761.8 KB Download
