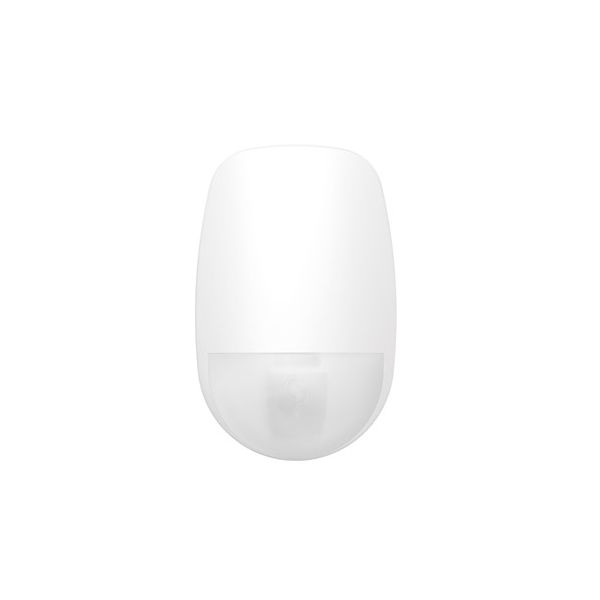

Dual PIR Detector 24G Indoor Wireless Tri-X Bidirectional 12m Hikvision
Hikvision wireless detector dual technology Via Radio 24G DS-PDD12P-EG2-WE
This detector is dual PIR/microwave 24G, to avoid wall penetration. It is indoor and wireless. It connects to the central panel very easily remotely through the APP.
Belonging to the AXPRO series with 868Mhz bidirectional Tri-X technology. It includes 3D optics that provide total coverage without a dead angle of up to 12 meters, with an angle of 85.9º.
The detector allows it to work even with pets at home, thanks to its immunity function to pets up to 30Kg. It runs on just 2 CR123A batteries (not included), which can last up to 5 years.
This detector becomes a highly reliable device, thanks to its protection against frequency hopping interference. Detects walls and windows in its perimeter protection range.
Technical specifications Hikvision wireless detector dual technology Via Radio 24G DS-PDD12P-EG2-WE
Detection methods: Passive Infrared and Microwave
12 meter detection range
85.9 ° detection angle
52 detection zones
Detection speed of 0.3 ~ 2m / s
Three levels of sensitivity
Immunity to pets up to 30 kg
6500 lux white light filter
24.15 ~ 24.25Ghz Microwave Frequency
Digital temperature compensation
Zero zone protection
Digital processing
Sealed optics
Front and rear tamper protection
Ambient temperature indicator
Signal strength indicator
Tri-X wireless transmission technology
Two-way radio transmission
Transmission frequency 868MHz
AES-128 encryption
1.6 km transmission range in open field
Supports frequency hopping
Enrollment method by Power, Remote ID and QR code
Powered by 2 3V CR123A batteries not included
Battery life of up to 5 years (20 activations per day)
Storage temperature -20 ° C ~ + 60 ° C
-10 ° C ~ + 55 ° C operating temperature
10% ~ 90% relative humidity
Indoor installation environment
Installation height of 1.8 ~ 2.4 meters
Ceiling mount bracket (optional): (DS-PDB-IN-Ceilingbracket)
Wall mount bracket (optional): (DS-PDB-IN-Wallbracket)
Dimensions: 65.5 (W) x 103 (H) x 48.5mm
Weight: 141g
| Color | White |
|---|---|
| Automation | PIR Presence Sensor |
| Product Brand | Hikvision |
| Icon | Label | Size | Download |
|---|---|---|---|
|
Ficha técnica detector PIR dual 12m Hikvision | 1.6 MB | Download |
