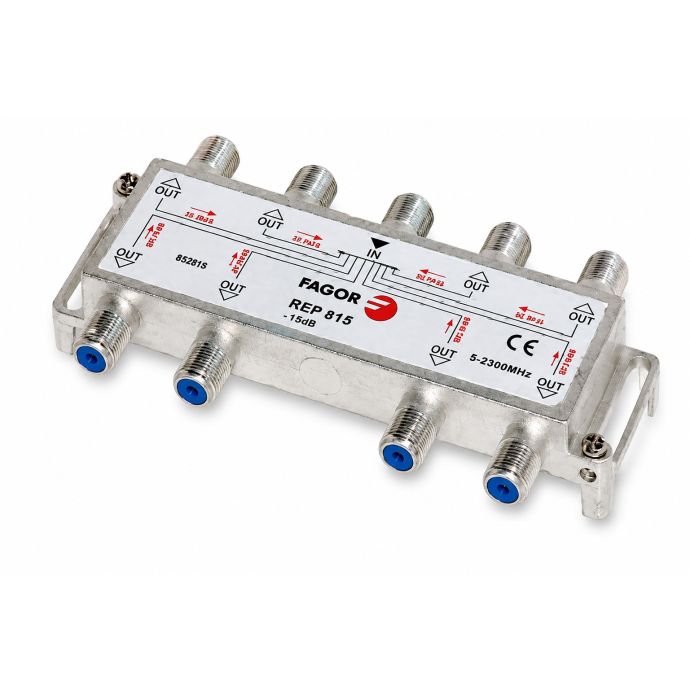

main product photo

Fagor 8-Way FI SAT Tap with F Connector 15dB

SKU
FAG85281
Brands: Fagor
€9.40
Tax included
% Discount for professionals
Fagor
Availability: On request
1 to 7 days

Fagor DER 815 8-Way Tap for DTT and Satellite IF Distribution

The Fagor DER 815 is designed to tap and distribute television signals from a main coaxial line to 8 independent homes, rooms or outlets, while maintaining signal continuity to the following floors of the building. By providing eight outputs from a single device, it helps optimise installation space and simplifies the layout of larger distribution networks.

This 8-way tap operates across a 5–2300 MHz frequency range, making it suitable for both DTT (Digital Terrestrial Television) and 1st IF satellite signals. Its tap outputs provide 15 dB attenuation, while the fully shielded construction helps protect the signal against external interference. Connections can be completed using F connectors for coaxial cable, providing a secure threaded connection for professional installations.

The DER 815 is particularly suitable for installers working on collective TV distribution networks and ICT installations where eight independent lines are required from a single point while the main distribution line continues to subsequent floors. Fagor also specifies DC power pass through all outputs. It is suitable for new installations and can also be used as a replacement when the characteristics of the existing network and the tap being replaced are compatible. It can be combined with other TV signal splitters and distribution components to configure the building's coaxial distribution network.

In summary, the Fagor DER 815 8-way 15 dB tap provides a compact solution for distributing DTT and satellite IF signals to multiple users, combining 5–2300 MHz coverage, F-type connections, high shielding performance and continuity of the main distribution line.

Reference: FAG85281

-
+

Further Information about the Fagor 8-Way FI SAT Tap with F Connector 15dB

Practical Applications of the Fagor 8-Way FI SAT Tap with F Connector 15dB

Example 1. Distribution to eight homes or user outlets:

In a residential building with several users on the same floor, the Fagor DER 815 can be installed on the main coaxial distribution line to provide up to eight independent branches. Each output has a nominal tap attenuation of 15 dB, while the through line allows the signal to continue towards the next floors or distribution points. This makes it especially useful in collective installations where several users must be served from a single location without combining multiple smaller taps.

Example 2. Combined DTT and satellite IF distribution:

The Fagor 85281 DER 815 operates over a frequency range of 5 to 2300 MHz, allowing it to work with both terrestrial television signals and the 1st satellite IF band. Its eight F-type outputs provide a compact distribution point for homes, rooms or individual outlets, while its fully shielded construction helps protect the network against external interference. This makes the unit suitable for ICT installations requiring reliable DTT and satellite signal distribution.

Package Contents of the Fagor DER 815

  • 1 x Fagor DER 815 8-way tap, manufacturer reference 85281.

Technical specifications Fagor DER 815

Specification Value
Brand Fagor
Model DER 815
Manufacturer reference 85281
SKU FAG85281
Number of outputs 8
Covered frequency band 5–2300 MHz
Tap attenuation 5–2300 MHz 15 dB
Through attenuation 5–47 MHz 3.5 dB
Through attenuation 47–862 MHz 4 dB
Through attenuation 950–2150 MHz 5 dB
Through attenuation 2150–2300 MHz 5.5 dB
Directivity 5–47 MHz 25 dB
Directivity 47–862 MHz 22 dB
Directivity 950–2150 MHz 22 dB
Directivity 2150–2300 MHz 20 dB
Isolation between outputs 5–47 MHz 22 dB
Isolation between outputs 47–862 MHz 22 dB
Isolation between outputs 950–2150 MHz 22 dB
Isolation between outputs 2150–2300 MHz 16 dB
Return loss 5–862 MHz 12 dB
Return loss 950–2150 MHz 10 dB
Minimum shielding factor 5–862 MHz 65 dB
Minimum shielding factor 950–2150 MHz 55 dB
DC power pass Through all outputs
Connector type F-type
Construction Fully shielded
Recommended application ICT installations, DTT and satellite IF distribution
Packaging dimensions (10 units) 205 × 125 × 67 mm
Packaging weight (10 units) 1.10 kg
More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT & SAT Distribution
SERIES DTT F-connector
Color Silver
TV-SAT Distribution Equipment Diverter
Entorno Interior
TV-SAT Distribution Connection F
Outputs 8
Insertion Loss (dB) 15
Usar stock disponible No
Product Brand Fagor
