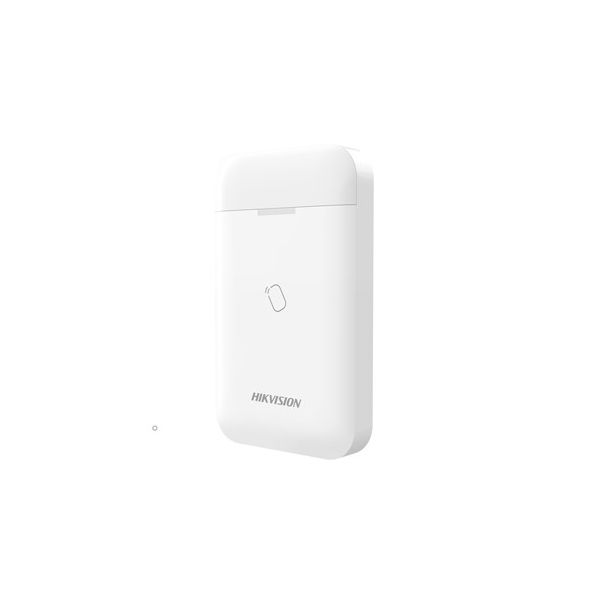

AXPRO 868MHz Hikvision Wireless RF Proximity Reader
Wireless RF Proximity Reader AXPRO 868MHz Hikvision DS-PT1-WE
A proximity reader in an alarm system is used to open a door by simply bringing a card or key ring close to the reader without the need for physical contact. In the case of having two plants, for example, you can have one of them built and the other not.
It uses an AES-128 encryption type and can control up to 4 zones with just one reader.
It has an LED indicator that will indicate the status, area, armed, disarmed, signal, alarm. It works with 3 AA batteries
Technical Specifications of Wireless RF Proximity Reader AXPRO 868MHz Hikvision DS-PT1-WE
- Hardware features
Switch - Power on/off
indicador - 5, area(blue), fault(orange), arm(blue), disarm(green), alarm(red), signal(red/green)
- RF transmission
RF Modulation - 2GFSK
RF Frequency - 868 MHz
RF Range - 1200m(open area)
- Electrical characteristics
Battery type - Three AA batteries
Battery life span - 2 years (swipe tag 10 times per day )
Consumo de energía - Quiescent current: 110 uA Max current: 292mA Voltage: 1.5 VDC
- General
Operation temperature - -10°C to +55°C (-4°F to +122°F)
Operation humidity - 10% to 90% (no condensing)
Dimension(WxHxD) - 75*124*21 mm
- 176g (with battery)
Color - white
Installation method - Wall mounting
| Color | White |
|---|---|
| Automation | Automatic Door |
| Product Brand | Hikvision |
| Icon | Label | Size | Download |
|---|---|---|---|
|
Ficha técnica lector de proximidad DS-PT1-WE | 785.5 KB | Download |
