Nevoswitch 17 x 17 x 12 de planta "F" terminal / cascada

SKU
TEL714802
Brands: Televes
€663.07 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

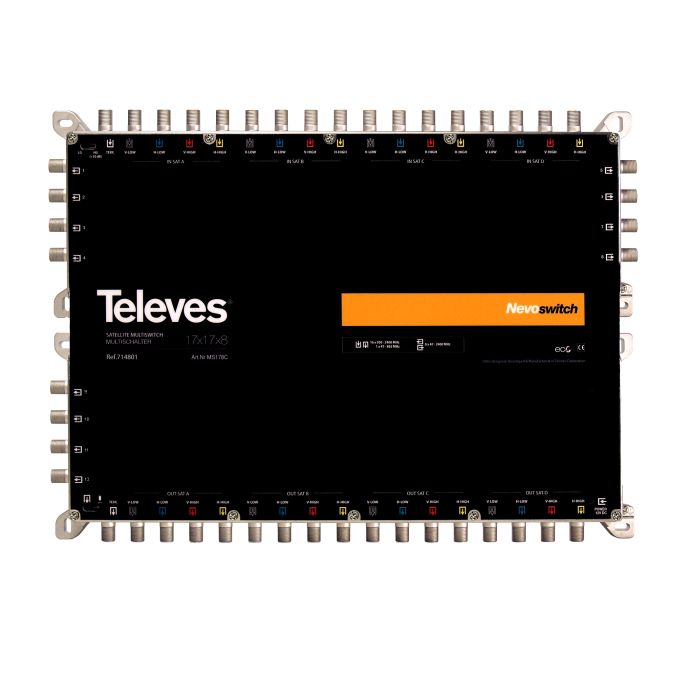

Nevoswitch 17 inputs x 17 outputs x 12 from floor "F" Terminal/Cascade

Each nevoswitch can be configured as a terminal or cascade via a switch. It has a low consumption mode (ECO) that adjusts the electrical consumption of the installation to the number of connected users and thanks to its zamak chassis it is immune to radiation.

Nevoswitch 17 inputs x 17 outputs x 12 floors "F" Terminal/Cascade. Ref: 714802. This is a configurable element to better adapt the signal. Thanks to its small size and its design it is easy to handle.

12 dB potentiometer on each output to enhance the level individually. It has a switch to feed terrestrial previous or the passage of current.

Made of zamak, it is small in size and compact. It has color identification both at the input and at the output.

The multiswitch has an ECO mode to reduce consumption, as well as a switch to change its use between cascade and star.

The power supply can be done autonomously through the satellite receiver, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.

-
+

Nevoswitch Technical Specifications 17 inputs x 17 outputs x 12 plant "F" Terminal/Cascade

Characteristics:

Reduced size.
Configurable.
Independent amplification of lines.
Multiple feeding options.
Independent regulation.





Type     17x17x12
Frequency range MHz SAT 950 ... 2200 / 2400
RF 88 ... 862
RP 5 ... 65
Input level dBμV SAT 112
RF 90
Through losses dB SAT 3.5 ... 7.5 / 10
RF 4
RP 6
Tap losses
1..8 / 9..16 / 17..24 / 25..32
dB SAT (1) 3/6/-/-
RF 4 / 6 / - / -
RP 34 / 37 / - / -
Isolation dB H/V >30
Users >25
DC pass   In-Out / Out-In
Max. total consumption mA PSU Low Gain(2) 90
High Gain(2) 150
Receiver 40
Temp. range ºC   –5 ... +45 ºC
Protection level IP   IP20
More Information
EAN 8424450173244
Hight 0.405
Length 0.041
Width 0.285
System Satellite
SERIE Nevoswitch
Type Cascading, Final
# Input satellites 16
# Terrestrial inputs 1
# Inputs 17
#User outputs 12
LNB type Quattro
Product Brand Televes
