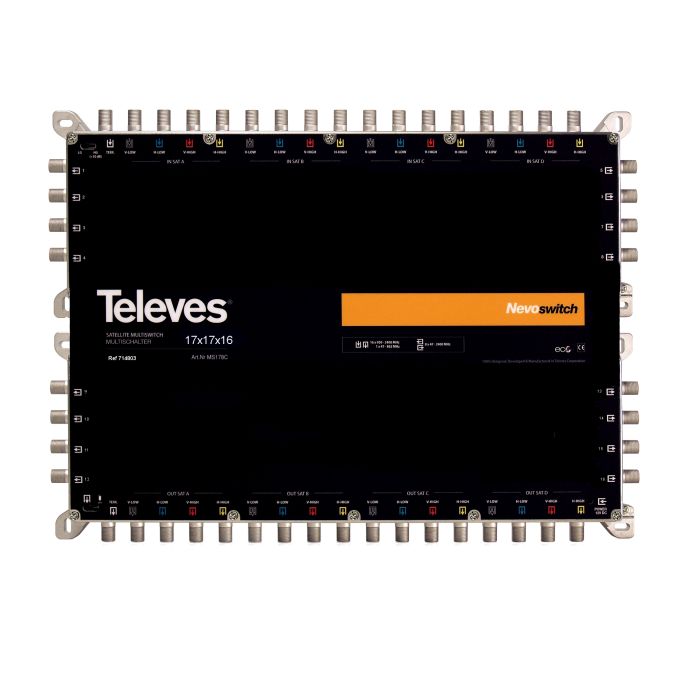

Nevoswitch 17 inputs x 17 outputs x 16 from floor "F" Terminal/Cascade

Each nevoswitch can be configured as a terminal or cascade via a switch. Its zamak chassis makes it immune to radiation. It has a low consumption mode (ECO) that adjusts the electrical consumption of the installation to the number of connected users.

Nevoswitch 17 inputs x 17 outputs x 16 floors "F" Terminal/Cascade. Ref: 714803. This is a configurable element to better adapt the signal. Thanks to its small size and its design it is easy to handle.

12 dB potentiometer on each output to enhance the level individually. It has a switch to feed terrestrial previous or the passage of current.

Made of zamak, it is small in size and compact. It has color identification both at the input and at the output.

The multiswitch has an ECO mode to reduce consumption, as well as a switch to change its use between cascade and star.

The power supply can be done autonomously through the satellite receiver, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.



-
+

Nevoswitch Technical Specifications 17 inputs x 17 outputs x 16 plant "F" Terminal/Cascade

Characteristics:

Reduced size.
Configurable.
Independent amplification of lines.
Multiple feeding options.
Independent regulation.





Type     17x17x16
Frequency range MHz SAT 950 ... 2200 / 2400
RF 88 ... 862
RP 5 ... 65
Input level dBμV SAT 112
RF 90
Through losses dB SAT 3.5 ... 7.5 / 10
RF 4
RP 6
Tap losses
1..8 / 9..16 / 17..24 / 25..32
dB SAT (1) 3/6/-/-
RF 4 / 6 / - / -
RP 34 / 37 / - / -
Isolation dB H/V >30
Users >25
DC pass   In-Out / Out-In
Max. total consumption mA PSU Low Gain(2) 90
High Gain(2) 170
Receiver 40
Temp. range ºC   –5 ... +45 ºC
Protection level IP   IP20
More Information
EAN 8424450173251
Hight 0.405
Length 0.041
Width 0.285
System Satellite
SERIE Nevoswitch
Color Black
Product Brand Televes
