Optical UAP 2 Outputs SC/APC + FO 65m

SKU
PAU2ADA65M
Brands: GTlan
Availability: In stock
24/48 Hours
€38.12 Tax included
GTlan

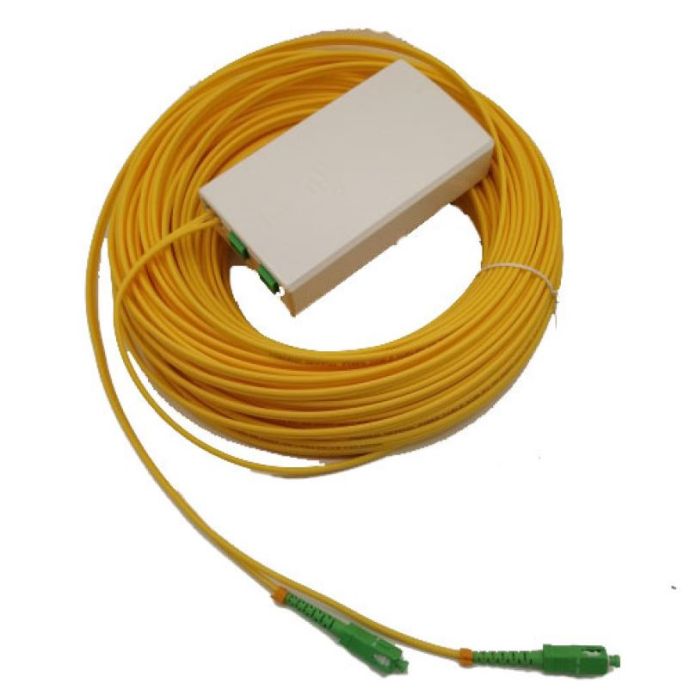

GTLAN Optical UAP 2 outputs SC/APC + 65m Duplex Patch Cord

User Access Point (UAP) to install of fiber optics, ideal in FTTH fiber installations in an ICT, saving in the assembly of each connector in the PAUs.

The kit of 2 SC/APC ports and 65 meter pre-connected 2-fiber cable, has an interior LSZH protective cover. The box includes screws for its fixation in the access registers of the users.

UAP of Fiber Optic preconnected 2 SC/APC Outputs with 65 meter patch cords

What technical specifications do GTLAN Optical UAPs have?

Box Specifications:

  • Material: ABS plastic
  • Cable entry: Bottom
  • Fixation: Surface
  • Connectors: 2x SC / APC + 2 (cascaded)
  • White color
  • Measurements: 135 x 75 x 25 mm
  • Packaging: Unit
  • Regulations: UL94 V-0, IEC 61754-4, Telcordia GR-409, Telcordia GR-326, IEC 60793, RoHS 2011/65 / EU and CE

Hose Specifications:

  • FO cable type: Duplex
  • Cover material: LSZH
  • Cover color: Yellow
  • Cable diameter: 3 mm
  • Adapters: 2x SC / APC
  • Insertion loss: ≤ 0.2 dB
  • Return loss: ≥ 60 dB
  • Fiber type: Singlemode G.657.A2
  • Working temperature: -40º to 80º C
  • Tensile strength: 10 N
  • Min. Bend radius: 35 mm
More Information
EAN8421622500015
SystemOptic Fiber
Serie65m
Fiber typeSinglemode
Product BrandGTlan
