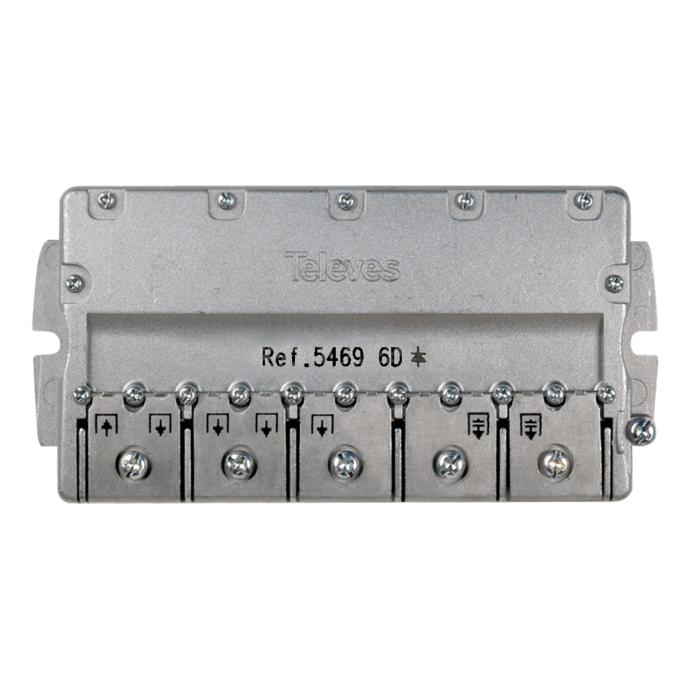

Splitter DTT-SAT EasyF 6D 12dB Televes

SKU
TEL5469
Brands: Televes
Availability: In stock
24/48 Hours
€15.31 Tax included
-
+

6-way EasyF DTT-SAT splitter 12dB Televes 5469

DTT and Satellite distribution equipment (5-2400Mhz) to distribute the signal of 1 coaxial cable up to 6 TV sockets in the house, with 12dB of attenuation.

Its flange or "EasyF" type connections make the design of the equipment more compact and its installation much easier. The EasyF inputs do not need connectors since the coaxial cable is inserted directly stripped into the distributor and fixed by tightening a screw.

The distributors have DC current pass to power previous equipment of the installation. This equipment is designed to place indoors, suitable for outdoor always inside a Televes 4163 outdoor chest.

Televes distributor for DTT and Satellite with 6 outputs Flange type (EasyF) indoor.

What are the main features of the Televes 5469 splitter?

  • EasyF connection system: easy to install, savings on mounting
  • Made of Zamak, high shielding
  • Outstanding reliability: automated manufacturing using new generation micro-components
  • Improves through losses
  • Outstanding electrical behaviour: impulsive noise reduction
  • Grounding screw provided
  • DC pass from the outputs to the input

What technical specifications does the Televes 5469 splitter have?

Frequency range MHz 5-2400
10-862 950-2400
Number of outputs 6
Through loss S1/S2 dB 14 14
S3/S4 12 12
S5/S6 13 11
Tap loss >28
DC Pass (max.) mA 300 (in.↔out.)
More Information
EAN 8424450118986
System DTT & SAT
SERIE Brida Connector
Color Silver
TV-SAT Distribution Equipment Distributor
Entorno Interior
TV-SAT Distribution Connection Flange
Outputs 6
Input signal DAB, FI, FM, UHF, VHF
Insertion Loss (dB) 12
Current bypass Yes
Product Brand Televes
